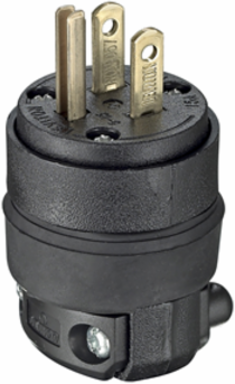

Leviton 515PR 15 Amp 125 Volt NEMA 5-15P 2-Pole 3-Wire Straight Blade Plug, EPTR Rubber, Black
- MPN: 515PR
- UPC: 078477841426
- PPN: LEV-515PR
CAD
$11.96
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Plug, Straight Blade, Rubber - Black
Documentation & Downloads
Specifications
Additional
| Amperage | 15 A |
|---|---|
| Current Interrupting | Certified for current interrupting at full rated current |
| Operating Temperature | -40 C to 60 C |
| Pole | 2 |
| Wire Gauge | 18-12 AWG |
| Cord Range | 0.245 to 0.700 in |
| NEMA Configuration | 5-15P |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Blades/Contacts Material | Brass |
| Standards and Certifications | UL/CSA, RoHS Compliant |
| UL498 | File E13393 |
| ANSI | C-73 |
| Grade | Residential |
| Warranty | 2-Year Limited |
| Country of Origin | Mexico |
| Voltage | 125 VAC |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Temperature Rise | Max 30 C after 50 cycles OL at 150% rated current |
| Wire Count | 3 |
| Grounding | Grounding |
| Blade Style | Straight |
| Terminal Accommodation | 18-12 AWG |
| Material | EPTR Rubber |
| Assembly Screws Material | Steel, Zinc Plated |
| CSA C22.2 No. 42 | File LR-406 |
| NEMA | WD-6 |
| Flammability Rating | Rated V-2 per UL 94 |
| Series | 515PV |
| Color | Black |
