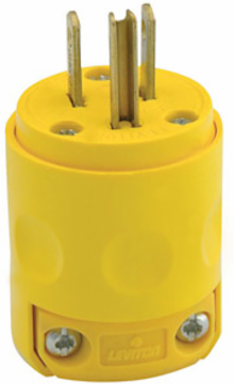

Leviton 515PV 15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Plug, Straight Blade, Rubber, Yellow
Leviton 515PV 15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Plug, Straight Blade, Rubber, Yellow
- MPN: 515PV
- UPC: 078477841242
- PPN: LEV-515PV
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$4.28/ EA
Description
15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire, Plug, Straight Blade - Yellow
Features
- Hinged design provides fast, easy assembly
- Ideal for replacement of plugs on tools, appliances and extension cords
- Accepts AWG SJ 16/3
- NEMA 5-15P
- Available in Black, Gray, Orange and White
- cULus, NOM
- Rugged PVC plug and connector (515PV/515CV) resists moisture and chemicals
- Unique dimpled body provides a secure hinge grip
- Built-in cord grip adjusts automatically for use with 18-12 AWG.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13393
CSA C22.2 No. 42File LR-406
NOM057
Warranty2-Year Limited
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Body Material
- PVC
Blades/ContactsBrass
ColorYellow
Mechanical Specifications
- Cord Range
- .245 - .655
- Terminal Accom.
- 18-12 AWG
Product IDRatings and NEMA I.D. permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Grade
- Residential
- Standards and Certifications
- UL/CSA
Series515PV
Wire Gauge18-12 AWG
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Wire3
