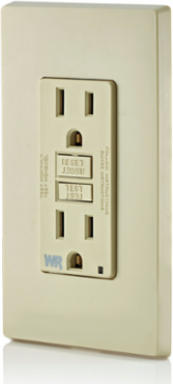

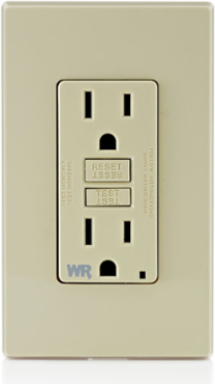

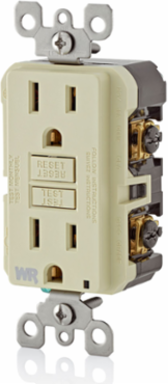

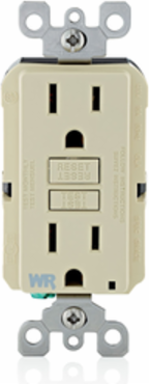

Leviton GFWR1-I 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim Weather-Resistant GFCI, Monochromatic, back and side wired, wallplate/faceplate sold separately - Ivory
- MPN: GFWR1-I
- UPC: 078477874837
- PPN: LEV-GFWR1-I
CAD
$54.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim Weather-Resistant GFCI, Monochromatic, back and side wired, wallplate/faceplate sold separately - Ivory
Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Stainless steel strap and screws, cold impact resistant face and buttons
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated
Documentation & Downloads
Specifications
Standards and Certifications
- NOM
- Yes
- MIL-SPEC
- A-A-55459-SB
- Fed Spec WC-596
- Yes
- UL 943
- File E48380
CSA-C22.2 No. 144.1-06File LR-57811
UL498Yes
ANSIC-73
Material Specifications
- Line Contacts
- Brass Double Wipe .031 Thick
- Face Material
- Polypropylene
- Terminal Screws
- Stainless Steel
- Grounding Screw
- Stainless Steel
- Yoke
- Stainless Steel
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Product IDRatings and Catalog No. molded into face and stamped into shroud
Terminal Accom.14-10 AWG
NotesWallplate Sold Separately
Body MaterialPolycarbonate
ClampsBrass
Mechanical Specifications
- Face Material
- Polypropylene
- Wire
- 3
- Trip Level
- Class A, 5mA plus or minus 1mA
- Product ID
- Ratings and Catalog No. molded into face and stamped into shroud
- Strap Material
- Stainless Steel
- Terminal Accom.
- 14-10 AWG
- Fed Spec WC-596
- Yes
- Wallplate
- Order Separately
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Color
- Ivory
- Grade
- Residential/Commercial Specification Grade
- Voltage
- 125 VAC
FeatureSelf-Test
GroundingGreen Ground Screw
TypeStandard Duplex, Weather Resistant
BrandSmartlockPro
Warranty2-Year Limited
NEMA5-15R
Body MaterialPolycarbonate
Tamper ResistantYes
Amperage15 A
TerminationBack & Side
Pole2
Standards and CertificationsUL/CSA
Product Features
- Amperage
- 15 A
- Wire
- 3
- Wallplate
- Order Separately
- Country Of Origin
- China
- Strap Material
- Stainless Steel
- Feature
- Self-Test
- Pole
- 2
- Grounding
- Green Ground Screw
- Termination
- Back & Side
- At Rated Voltage
- 1 HP
- Standards and Certifications
- UL/CSA
Warranty2-Year Limited
NEMA5-15R
ColorIvory
BrandSmartlockPro
Fed Spec WC-596Yes
GradeResidential/Commercial Specification Grade
Voltage125 VAC
Trip LevelClass A, 5mA plus or minus 1mA
Tamper ResistantYes
TypeStandard Duplex, Weather Resistant
Environmental Specifications
- Line Contacts
- Brass Double Wipe .031 Thick
- Terminal Screws
- Stainless Steel
- Operating Temperature
- -35C to +66C
- Body Material
- Polycarbonate
- Clamps
- Brass
Face MaterialPolypropylene
NotesWallplate Sold Separately
Grounding ScrewStainless Steel
YokeStainless Steel
Electrical Specifications
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Operating Temperature-35C to +66C
Short Circuit Current Rating10KA
AC Horsepower Ratings
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
At Rated Voltage1 HP
Short Circuit Current Rating10KA
