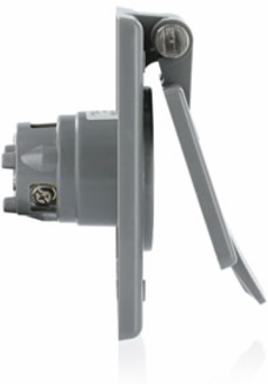

Leviton 4585-CWP 15 Amp Locking Blade Power Outlet Receptacle, NEMA L6-15R, Nylon, Gray
- MPN: 4585-CWP
- UPC: 078477046180
- PPN: LEV-4585-CWP
CAD
$125.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 250 Volt, NEMA L6-15R, 2P, 3W, Power Outlet Receptacle, Locking Blade, Industrial Grade, Grounding, Standard Wire Wells Wired, Nylon Strap - GRAY
Features
- Leviton’s industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- Warranty
- 10-Year Limited
CSA C22.2 No. 42File LR-16347
UL498File E13399
Material Specifications
- Body Material
- Nylon
- Cover and Plate Material
- Glass-Filled Thermoplastic
- Grounding Screw
- Brass 8-32
- Strap Material
- Nylon
ColorGray
Face MaterialNylon
Line ContactsBrass
Terminal ScrewsBrass 10-32
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-10 AWG
- Termination
- Standard Wire Wells
Screw Terminal Torque10-14 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 1500V per UL498
- Pole
- 2
- Voltage
- 250 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1-1/2 HP
