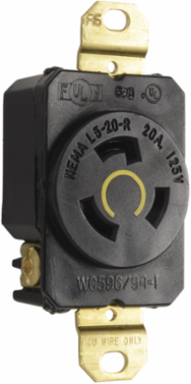

Pass & Seymour L520R 20A 125V NEMA L520 Single Receptacle, 2-Pole 3-Wire, Black, 2.29 Inch Height
- MPN: L520R
- UPC: 785007252057
- PPN: P-S-L520R
CAD
$20.44
/ E
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V NEMA L520 Single Receptacle, 2-Pole 3-Wire, Black, 2.29 Inch Height
Features
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
- Side and external screw-pressure-plate back wire capability.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.19 in
- Height
- 2.29 in
- Width
- 1.61 in
- Country of Origin
- Mexico
- Standard
- UL 498
- Outlet Type
- Locking
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 1.0
- Application Sector
- Commercial
- Features
- Brass Mounting Strap
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Wire Connection Type
- Internal Pressure Plates
ColorBlack
FinishMatte
Product LinePass & Seymour
Amperage20.0 A
Voltage125.0 V
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of PolesDouble Pole
Application SectorIndustrial
NEMA Configuration CodeL5-20R
Wire Connection TypeScrew Terminals
Operating Temperature Max75.0 °C
Operating Temperature-40°-75°C
