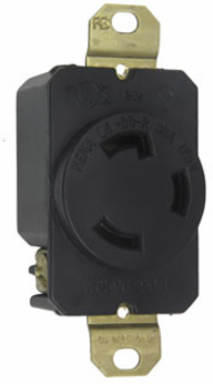

30A NEMA L530 Single Receptacle, 3-Wire, Black, 2.37 Inch Height
Pass & Seymour

Pass & Seymour L530R 30A NEMA L530 Single Receptacle, 3-Wire, Black, 2.37 Inch Height

  • MPN: L530R
  • UPC: 785007253054
  • PPN: P-S-L530R

CAD

$35.84

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

30A NEMA L530 Single Receptacle, 3-Wire, Black, 2.37 Inch Height

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Documentation & Downloads

Specifications

Key Specifications

Depth
1.28 in
Color
Black
Width
1.61 in
Country of Origin
Mexico
Voltage
125.0 V
Number of Wires
3.0
Indoor/Outdoor
Indoor
Wall Plate Included
No
Number of Receptacles
1.0
Application Sector
Commercial
Features
Brass Mounting Strap
Connection Location
Back and Side
Warranty Type
1-Year Limited Warranty
Height2.37 in
Product LinePass & Seymour
Amperage30.0 A
StandardUL 498
StandardFEDSPEC
Outlet TypeLocking
Wire Size14 - 10 AWG
FeaturesImpact Resistant
Number of PolesDouble Pole
Application SectorIndustrial
NEMA Configuration CodeL5-30R
Wire Connection TypeScrew Terminals
Special FeaturesLocking Device, impact resistant
