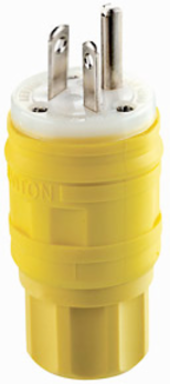

Leviton 14W15 Wetguard Watertight 15 Amp 347 Volt NEMA 24-15P Straight Blade Plug
- MPN: 14W15
- UPC: 078477065105
- PPN: LEV-14W15
CAD
$92.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp, 347 Volt, NEMA 24-15P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Wetguard - YELLOW
Features
- Corrosion resistant, watertight, and dust tight connector – NEMA Type 3, 3S, 4, 4X, 6, & 6P
- Meets IP66 and IP67 standards when mated with a Wetguard connector or inserted in to a corrosion resistant receptacle with a Wetguard flip lid. Plug caps are available to protect the plug when not used
- Corrosion resistant, nickel-plated brass blades and terminal screws plus non-magnetic stainless steel face module screws
- Amperage, voltage, and NEMA configuration are molded into the face module making identification and replacement faster and easier
- Interlocking tongue and groove construction between face module and housing prevents moisture and debris from passing around the face module during use
- Santoprene EPTR housing, grommet, and closure cap resist water, most acids, alkalies, grease, oil, and solvents. EPTR offers enhanced UV stability and resists fungal growth
- Innovative strain relief and cord sealing system features a deep fluted compression nut, strain relief washer, and EPTR grommet for most reliable seal
- Available in high visibility yellow
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
- UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- THE BRAND YOU TRUST- Backed by a lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Amperage
- 15 A
- Blades/Contacts
- Nickel-Plated Brass
- Brand
- Wetguard
- Cord Range
- .375 - .655
- Grounding
- Grounding
- Pole
- 2
- Voltage
- 347 VAC
- Wire
- 3
Assembly ScrewsStainless Steel 300
Body MaterialEPTR Rubber
ColorYellow
Device TypeStraight Blade Plug
NEMA24-15R
Standards and CertificationsUL/CSA
WarrantyLimited Lifetime Warranty
Wire Gauge18-10 AWG
Environmental Specifications
- Environment
- Wet
IP RatingIP66, IP67, IP69K
