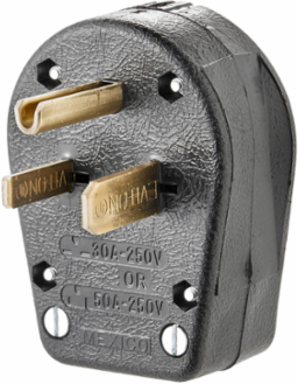

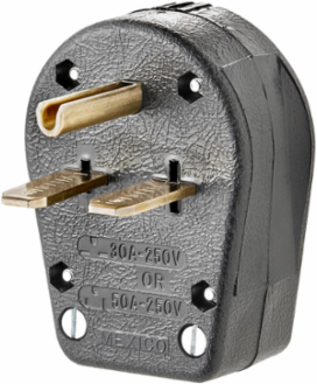

Leviton 931-E 30/50 Amp, 250 Volt, 2P, 3W, Plug, Straight Blade, Commercial Grade, Angle, Grounding - Black
Leviton 931-E 30/50 Amp, 250 Volt, 2P, 3W, Plug, Straight Blade, Commercial Grade, Angle, Grounding - Black
- MPN: 931-E
- UPC: 078477644928
- PPN: LEV-931-E
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$21.92/ EA
Description
30/50 Amp, 250 Volt, NEMA 6-30P/6-50P, 2P, 3W, Plug, Straight Blade, Commercial Grade, Angle, Grounding - Black
Features
- Leviton offers a large selection of 15, 20, 30 and 50 Amp Commercial Grade Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they’re ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity. **This is a direct replacement of 931
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13393
CSA C22.2 No. 42File LR-406
NOM057
Warranty2-Year Limited
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Body Material
- Thermoplastic
Blades/ContactsBrass
ColorBlack
Mechanical Specifications
- Cord Range
- .630 - 1.050
- Terminal Accom.
- 10-6 AWG
Product IDRatings and NEMA I.D. permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Electrical Specifications
- Amperage
- 30/50 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 250 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Wire3
