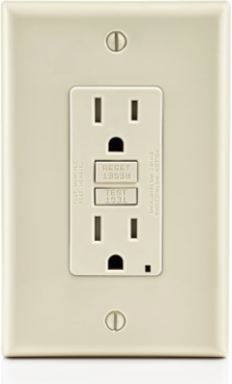

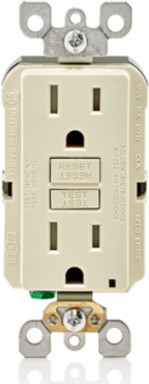

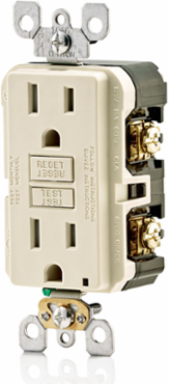

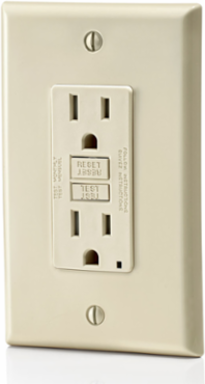

Leviton GFTR1-MT 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro GFCI, Monochromatic, back and side wired, midway sized nylon wallplate/faceplate, screws and self-grounding clip included - Light Almond
- MPN: GFTR1-MT
- UPC: 078477764978
- PPN: LEV-GFTR1-MT
CAD
$22.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro GFCI, Monochromatic, back and side wired, midway sized nylon wallplate/faceplate, screws and self-grounding clip included - Light Almond
Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated.
Documentation & Downloads
Specifications
Standards and Certifications
- NOM
- Yes
- CSA-C22.2 No. 144.1-06
- File LR-57811
- UL498
- Yes
- UL 943
- File E48380
CSA C22.2 No. 42Yes
MIL-SPECA-A-55459-SB
ANSIC-73
Material Specifications
- Line Contacts
- Brass Double Wipe .031 Thick
- Face Material
- Thermoplastic
- Terminal Screws
- Plated Steel
- Grounding Screw
- Plated Steel
- Yoke
- Zinc-Plated Steel
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Product IDRatings are permanently marked on device
Terminal Accom.14-10 AWG
Notesw/ Midway Sized Wallplate
Body MaterialPolycarbonate
ClampsBrass
Mechanical Specifications
- Amperage
- 15 A
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Color
- Light Almond
- Brand
- SmartlockPro
- Fed Spec WC-596
- Yes
- Grade
- Residential/Commercial Specification Grade
- Voltage
- 125 VAC
- Trip Level
- Class A, 5mA plus or minus 1mA
- Tamper Resistant
- Yes
- Standards and Certifications
- UL/CSA
Warranty2-Year Limited
Wire3
NEMA5-15R
TypeStandard Duplex
Strap MaterialGalvanized Steel
FeatureSelf-Test
Pole2
GroundingSelf Grounding
TerminationBack & Side
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product Features
- Amperage
- 15 A
- Wire
- 3
- Color
- Light Almond
- Brand
- SmartlockPro
- Fed Spec WC-596
- Yes
- Grade
- Residential/Commercial Specification Grade
- Voltage
- 125 VAC
- Trip Level
- Class A, 5mA plus or minus 1mA
- Tamper Resistant
- Yes
- Type
- Standard Duplex
Warranty2-Year Limited
NEMA5-15R
Country Of OriginChina
Strap MaterialGalvanized Steel
FeatureSelf-Test
Pole2
GroundingSelf Grounding
TerminationBack & Side
At Rated Voltage1 HP
Standards and CertificationsUL/CSA
Environmental Specifications
- Line Contacts
- Brass Double Wipe .031 Thick
- Terminal Screws
- Plated Steel
- Operating Temperature
- -35C to +66C
- Body Material
- Polycarbonate
- Clamps
- Brass
Face MaterialThermoplastic
Notesw/ Midway Sized Wallplate
Grounding ScrewPlated Steel
YokeZinc-Plated Steel
Electrical Specifications
- Flammability
- Rated V-2 per UL 94
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Short Circuit Current Rating
- 10KA
Operating Temperature-35C to +66C
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
AC Horsepower Ratings
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
At Rated Voltage1 HP
Short Circuit Current Rating10KA
