Pass & Seymour

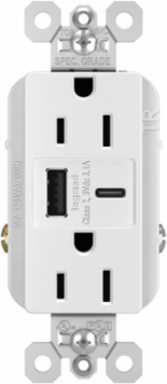

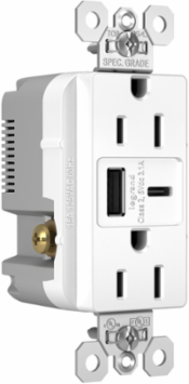

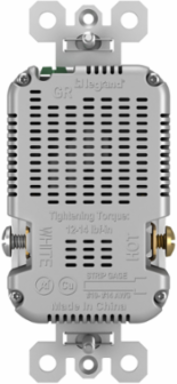

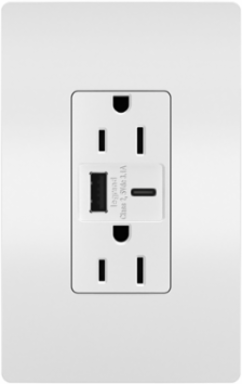

Pass & Seymour TR15USBACW 15A Tamper-Resistant Duplex Receptacle with USB A/C Ports, White

15A Tamper-Resistant Duplex Receptacle with USB A/C Ports, White
15A Tamper-Resistant Duplex Receptacle with USB A/C Ports, White
15A Tamper-Resistant Duplex Receptacle with USB A/C Ports, White
15A Tamper-Resistant Duplex Receptacle with USB A/C Ports, White
  • MPN: TR15USBACW
  • UPC: 785007181531
  • PPN: P-S-TR15USBACW

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$71.02/ EA

Description

Combination Tamper-Resistant 15A Duplex Convenience Receptacles with two 3.1A USB charging ports Type A and C

Features

  • Protects children: patented shutter system helps prevent improper insertion of foreign objects
  • Meets National Electrical Code® Tamper-Resistant requirement
  • Conducts an automatic test every three seconds, ensuring it’s always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced.
  • It also has our proven SafeLock® Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected
  • High-impact-resistant thermoplastic construction with tri-drive terminal screws

Specifications

Specifications

Depth
1.425 in
Amperage
15.0 A
Voltage
125.0 V
Country of Origin
Vietnam
Number of USBs
2.0
USB Wattage
15.0 W
Indoor/Outdoor
Indoor
Wall Plate Included
No
Features
USB-C Charging
Outlet Type
USB-Charging
Number of Poles
Double Pole
Application Sector
Commercial
NEMA Configuration Code
5-15R
Wire Connection Type
Screw Terminals
Application Sector
Multi-Dwelling Unit
Finish
Matte
Height2.677 in
Width1.693 in
StandardFEDSPEC
Number of Gangs1
USB Amperage3.1 A
Number of Wires3.0
Wire Size14 - 10 AWG
FeaturesUSB-A Charging
Is Tamper-ResistantYes
Number of Receptacles2.0
Outlet TypeTamper-Resistant
Connection LocationSide Only
Application SectorResidential
Warranty Type1-Year Limited Warranty
ColorWhite
Product LinePass & Seymour

Downloads
