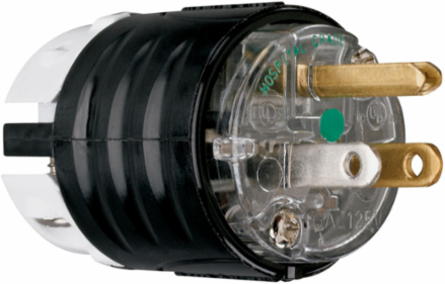

Pass & Seymour PS5266XHG Straight Blade Hospital Grade Plug 15A 125V, 1.516 Inch Width
Pass & Seymour PS5266XHG Straight Blade Hospital Grade Plug 15A 125V, 1.516 Inch Width
- MPN: PS5266XHG
- UPC: 785007236774
- PPN: P-S-PS5266XHG
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$18.44/ EA
Description
Straight Blade Hospital Grade Plug, double pole andthree wire, unit arrives completely ready-to-wire, cutting installation time significantly. Its nylon housing provides impact and chemical resistance. Its rugged two-piece cord grip provides more uniform cord retention andthe internal dust shield keeps terminals free of contaminants. 15amp 125volt.
Features
- Tri-drive assembly screws are standard on Hospital Grade plugs and connectors (angle plugs not included).
- All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
- Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
- Cord-grip screws recessed to protect installer against screwdriver head slippage.
- For covering patents, see www.legrand.us/patents.
Specifications
Specifications
- Length
- 1.752 in
- Color
- Black
- Product Line
- Pass & Seymour
- Flanged
- No
- Standard
- UL 498
- Features
- Durable
- NEMA Rating
- 5-15P
- Warranty Type
- 1-Year
- Features
- Dust Resistant
- Features
- Chemical Resistant
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-15P
- Connector Style
- Straight Blade
Width1.516 in
Country of OriginMexico
TypePlug
Amperage15.0 A
Voltage125.0 V
StandardFEDSPEC
Number of Wires3.0
Indoor/OutdoorIndoor
ConnectionWire Grounding
Number of PolesDouble Pole
Application SectorHealthcare
Terminal Accommodation#4 AWG
Special FeaturesReady to wire, rugged 2pc cord grip\
