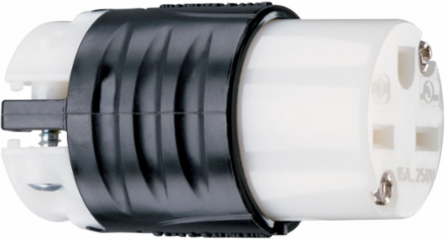

15A 250V Spec-Grade Connector, Black, 1.752 Inch Length, 2-Pole 3-Wire
Pass & Seymour

Pass & Seymour PS5669X 15A 250V Spec-Grade Connector, Black, 1.752 Inch Length, 2-Pole 3-Wire

  • MPN: PS5669X
  • UPC: 785007237177
  • PPN: P-S-PS5669X

CAD

$37.84

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

15A 250V Spec-Grade Connector, Black, 1.752 Inch Length, 2-Pole 3-Wire

Features

  • Unit arrives completely ready-to-wire, cuts installation time significantly.
  • Nylon housing provides impact and chemical resistance.
  • Rugged two-piece cord grip provides more uniform cord retention.
  • Internal dust shield keeps terminals free of contaminants.
  • Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
  • All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
  • Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
  • Cord-grip screws recessed to protect installer against screwdriver head slippage.
  • For covering patents, see www.legrand.us/patents.

Documentation & Downloads

Specifications

Key Specifications

Length
1.752 in
Width
1.516 in
Country of Origin
Mexico
Standard
UL498
Amperage
15.0 A
Standard
FEDSPEC
Warranty Type
1-Year
Features
Chemical Resistant
Application Sector
Industrial
Connector Style
Straight Blade
Special Features
Ready to wire, nylon housing, rugged 2pc cord grip
ColorBlack
Product LinePass & Seymour
FlangedNo
TypeConnector
Voltage250.0 V
Number of Wires3.0
Indoor/OutdoorIndoor
Number of PolesDouble Pole
NEMA Configuration Code6-15R
Terminal Accommodation#14 AWG - #10 AWG
