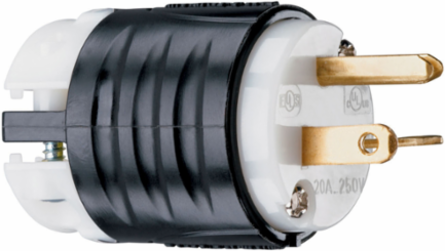

Pass & Seymour PS5466X Straight Blade Plug 20A 250V 2-Pole 3-Wire Black
- MPN: PS5466X
- UPC: 785007237078
- PPN: P-S-PS5466X
CAD
$28.33
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Plug 20A 250V 2-Pole 3-Wire Black
Features
- Unit arrives completely ready-to-wire, cuts installation time significantly.
- Nylon housing provides impact and chemical resistance.
- Rugged two-piece cord grip provides more uniform cord retention.
- Internal dust shield keeps terminals free of contaminants.
- Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
- All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
- Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
- Cord-grip screws recessed to protect installer against screwdriver head slippage.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 1.752 in
- Width
- 1.358 in
- Country of Origin
- Mexico
- Flanged
- No
- Standard
- UL 498
- Features
- Durable
- NEMA Rating
- 6-20P
- Warranty Type
- 1-Year
- Features
- Dust Resistant
- Features
- Chemical Resistant
- Application Sector
- Industrial
- Terminal Accommodation
- #4 AWG
- Special Features
- Chemical & Impact resistant, 2pc cord grip accepts wide cord
ColorBlack
Product LinePass & Seymour
TypePlug
Amperage20.0 A
Voltage250.0 V
StandardFEDSPEC
Number of Wires3.0
Indoor/OutdoorIndoor
ConnectionWire Grounding
Number of PolesDouble Pole
NEMA Configuration Code6-20P
Connector StyleStraight Blade
