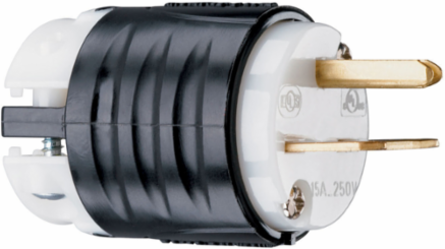

Pass & Seymour PS5666X Heavy-Duty 15A 250V Black and White Straight Blade Plug, 1.516 Inch Width
- MPN: PS5666X
- UPC: 785007237146
- PPN: P-S-PS5666X
CAD
$21.13
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy-Duty 15A 250V Black and White Straight Blade Plug, 1.516 Inch Width
Features
- Unit arrives completely ready-to-wire, cuts installation time significantly.
- Nylon housing provides impact and chemical resistance.
- Rugged two-piece cord grip provides more uniform cord retention.
- Internal dust shield keeps terminals free of contaminants.
- Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
- All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
- Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
- Cord-grip screws recessed to protect installer against screwdriver head slippage.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 1.752 in
- Color
- Black
- Product Line
- Pass & Seymour
- Flanged
- No
- Standard
- UL 498
- Features
- Durable
- NEMA Rating
- 6-15P
- Warranty Type
- 1-Year
- Features
- Dust Resistant
- Number of Poles
- Double Pole
- NEMA Configuration Code
- 6-15P
- Connector Style
- Straight Blade
Width1.516 in
Country of OriginMexico
TypePlug
Amperage15.0 A
Voltage250.0 V
StandardFEDSPEC
Number of Wires3.0
Indoor/OutdoorIndoor
ConnectionWire Grounding
Application SectorIndustrial
Terminal Accommodation#4 AWG
Special FeaturesChemical & Impact resistant, 2pc cord grip accepts wide cord
