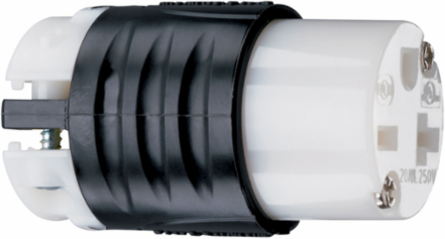

Pass & Seymour PS5469X Straight Blade Connector 2-Pole 3-Wire 20A 250V, 1.516 Inch Width
- MPN: PS5469X
- UPC: 785007237108
- PPN: P-S-PS5469X
CAD
$44.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Connector 2-Pole 3-Wire 20A 250V, 1.516 Inch Width
Features
- Unit arrives completely ready-to-wire, cuts installation time significantly.
- Nylon housing provides impact and chemical resistance.
- Rugged two-piece cord grip provides more uniform cord retention.
- Internal dust shield keeps terminals free of contaminants.
- Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
- All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
- Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
- Cord-grip screws recessed to protect installer against screwdriver head slippage.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 2.638 in
- Width
- 1.516 in
- Country of Origin
- Mexico
- Type
- Connector
- Standard
- UL 498
- Standard
- FEDSPEC
- Type
- Straight Blade
- Indoor/Outdoor
- Indoor
- Features
- Chemical Resistant
- Application Sector
- Industrial
- Terminal Accommodation
- #4 AWG
- Special Features
- Chemical & Impact resistant, 2pc cord grip accepts wide cord
ColorBlack
Product LinePass & Seymour
FlangedNo
Amperage20.0 A
Voltage250.0 V
Number of Wires3.0
Warranty Type1-Year
ConnectionWire Grounding
Number of PolesDouble Pole
NEMA Configuration Code6-20R
Connector StyleStraight Blade
