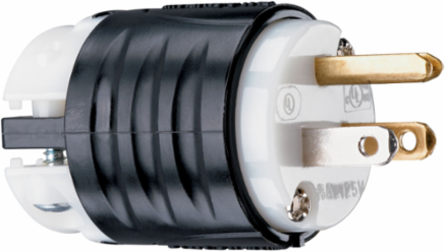

Pass & Seymour PS5266X 15A 125V Extra-Hard Use Spec-Grade Black Straight Blade Plug
- MPN: PS5266X
- UPC: 785007236903
- PPN: P-S-PS5266X
CAD
$11.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A 125V Extra-Hard Use Spec-Grade Black Straight Blade Plug
Features
- Unit arrives completely ready-to-wire, cuts installation time significantly.
- Nylon housing provides impact and chemical resistance.
- Rugged two-piece cord grip provides more uniform cord retention.
- Internal dust shield keeps terminals free of contaminants.
- Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
- All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
- Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
- Cord-grip screws recessed to protect installer against screwdriver head slippage.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15A
- Horsepower Rating
- 1/2 HP for NEMA 5-15
- Dielectric Withstand Voltage
- 1500V minimum
- Operating Temperature
- -40°C to +75°C
- Width
- 1.516 in
- Terminal Accommodation
- #18 AWG min – #10 AWG max
- Material
- Nylon, Brass
- Country of Origin
- Mexico
- Compliance
- UL Listed, CSA Certified, NEMA WD-1
Voltage125V
Maximum Working Voltage250V
Temperature Rise30°C max after 50 cycles at 150% rated current
Length1.752 in
Cord Diameter.230"-.690"
Configuration2-Pole 3-Wire
ColorBlack
Product LinePass & Seymour
