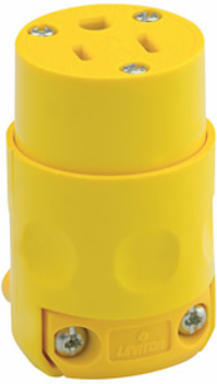

Leviton 515CV 15 Amp 125 Volt NEMA 5-15R 2 Pole 3 Wire Connector Yellow
Leviton 515CV 15 Amp 125 Volt NEMA 5-15R 2 Pole 3 Wire Connector Yellow
- MPN: 515CV
- UPC: 078477841334
- PPN: LEV-515CV
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$6.20/ EA
Description
15 Amp, 125 Volt, NEMA 5-15R, 2Pole, 3Wire Connector, Straight Blade - Yellow
Features
- Leviton offers a large selection of 15, 20, 30 and 50 Amp Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they’re ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13393
CSA C22.2 No. 42File LR-406
NOM057
Warranty2-Year Limited
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Body Material
- PVC
Blades/ContactsBrass
ColorYellow
Mechanical Specifications
- Cord Range
- .245 - .655
- Terminal Accom.
- 18-12 AWG
Product IDRatings and NEMA I.D. permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Grade
- Residential
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Wire3
