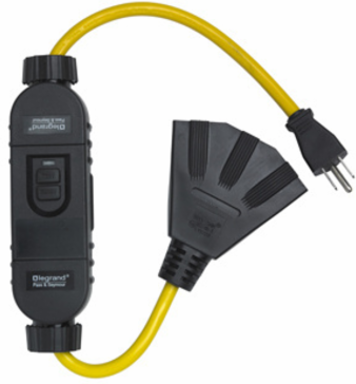

Pass & Seymour 1597TC2A Portable 2-Foot In-Line 15A GFCI with Tri-Cord Connector, Automatic Reset
- MPN: 1597TC2A
- UPC: 785007381641
- PPN: P-S-1597TC2A
- UNSPSC: 39121406
CAD
$104.79
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Portable 2-Foot In-Line 15A GFCI with Tri-Cord Connector, Automatic Reset
Features
- Protects against electrical shock caused by ground-fault occurrences.
- Conducts an industry-leading automatic self-test every 3 seconds. If the portable GFCI device ever fails, the red indicator light flashes to signal it should be replaced.
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
- Open neutral relay automatically cuts power to device line conductor if the neutral wire preceding the portable GFCI becomes damaged.
- Automatically energizes portable GFCI for use upon plug-in and after loss of primary power.
- Ground-Fault Circuit Interrupters (GFCI) help prevent electrical shock caused by ground faults.
- GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Length | 27.75 in |
| Weight | 1.1 lbs |
| Finish | Matte |
| Amperage | 15.0 A |
| Indoor/Outdoor | Outdoor |
| Is Weather Resistant | No |
| Connection Location | Top and Bottom |
| Operating Temperature Min | -35.0 °C |
| Number of Poles | Double Pole |
| Wall Plate Included | No |
| Number of Wires | 3.0 |
| Features | Automatic Reset; Portable GFCI |
| Depth | 1.75 in |
|---|---|
| Width | 2.0 in |
| Color | Black |
| Product Line | Pass & Seymour |
| Warranty Type | 1-Year Limited Warranty |
| Is Tamper-Resistant | No |
| Seismic Tested | No |
| Application Sector | Commercial; Multi-Dwelling Unit; Residential |
| Voltage | 125.0 V |
| Operating Temperature | -35°-66°C |
| Outlet Type | GFCI; Self-Test |
| NEMA Configuration Code | 5-15P; 5-15R |
| Operating Temperature Max | 66.0 °C |
