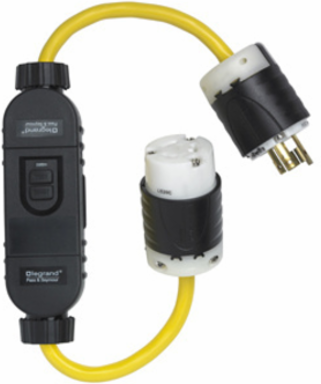

Pass & Seymour 2097TL2A Turnlok® Portable 2-Foot In-Line GFCI with Plug and Connector, Automatic Reset
- MPN: 2097TL2A
- UPC: 785007381702
- PPN: P-S-2097TL2A
CAD
$170.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stay safer on any job, any project with this code-compliant 2-Foot In-Line Portable GFCI (Automatic Reset). Designed for use with portable equipment (drills, saws, power painters, etc.), providing protection against electrical shock caused by ground faults.Designed with Legrand's Turnlok connector to lock plugs in place, preventing accidental disconnection for safer, more reliable operation.GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.
Features
- Protects against electrical shock caused by ground-fault occurrences.
- Conducts an industry-leading automatic self-test every 3 seconds. If the portable GFCI device ever fails, the red indicator light flashes to signal it should be replaced.
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
- Open neutral relay automatically cuts power to device line conductor if the neutral wire preceding the portable GFCI becomes damaged.
- Automatically energizes portable GFCI for use upon plug-in and after loss of primary power.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.75 in
- Color
- Black
- Finish
- Matte
- Width
- 2.0 in
- Country of Origin
- China
- Outlet Type
- GFCI
- Number of Wires
- 3.0
- Features
- Portable GFCI
- Is Tamper-Resistant
- No
- Is Weather Resistant
- No
- Number of Poles
- Double Pole
- Application Sector
- Residential
- NEMA Configuration Code
- L5-20R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Max
- 66.0 °C
- Special Features
- Turnlok® connector
Length27.75 in
Weight1.4 lb
Product LinePass & Seymour
Amperage20.0 A
Voltage125.0 V
Seismic TestedNo
Outlet TypeSelf-Test
Indoor/OutdoorOutdoor
Wall Plate IncludedNo
FeaturesAutomatic Reset
Application SectorCommercial
NEMA Configuration CodeL5-20P
Connection LocationTop and Bottom
Application SectorMulti-Dwelling Unit
Operating Temperature Min-35.0 °C
Operating Temperature-35°-66°C
