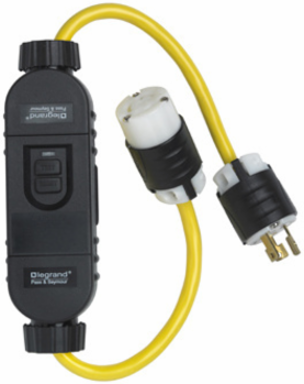

Pass & Seymour 1597TL2A Turnlok 2-Foot In-Line 15A GFCI with Automatic Reset, 1.0 lb
- MPN: 1597TL2A
- UPC: 785007381665
- PPN: P-S-1597TL2A
CAD
$136.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The perfect option for safely powering portable equipment, outdoors or in, when a GFCI-protected outlet is not accessible. Use this 2-Foot In-Line Portable GFCI (Automatic Reset) when plugging in drills, saws, leaf blowers, pressure washers, power painters, etc. for protection against electrical shock caused by ground-faults.Designed with Legrand's Turnlok connector to lock plugs in place, preventing accidental disconnection for safer, more reliable operation.GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.
Features
- Protects against electrical shock caused by ground-fault occurrences.
- Conducts an industry-leading automatic self-test every 3 seconds. If the portable GFCI device ever fails, the red indicator light flashes to signal it should be replaced.
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
- Open neutral relay automatically cuts power to device line conductor if the neutral wire preceding the portable GFCI becomes damaged.
- Automatically energizes portable GFCI for use upon plug-in and after loss of primary power.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.75 in
- Length
- 27.75 in
- Voltage
- 125.0 V
- Outlet Type
- GFCI
- Seismic Tested
- No
- Outlet Type
- Self-Test
- Indoor/Outdoor
- Outdoor
- Wall Plate Included
- No
- Features
- Automatic Reset
- Application Sector
- Commercial
- NEMA Configuration Code
- L5-15P
- Connection Location
- Top and Bottom
- Application Sector
- Multi-Dwelling Unit
- Operating Temperature Min
- -35.0 °C
- Operating Temperature
- -35°-66°C
- Finish
- Matte
Amperage15.0 A
Weight1.0 lb
Width2.0 in
Country of OriginChina
Number of Wires3.0
FeaturesPortable GFCI
Is Tamper-ResistantNo
Is Weather ResistantNo
Number of PolesDouble Pole
Application SectorResidential
NEMA Configuration CodeL5-15R
Warranty Type1-Year Limited Warranty
Operating Temperature Max66.0 °C
Special FeaturesTurnlok® connector
ColorBlack
Product LinePass & Seymour
