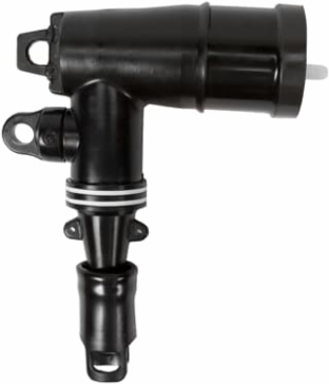

Thomas & Betts 162LRJSB5240-CS782C 15KV 200A ELBOW W-CS782
- MPN: 162LRJSB5240-CS782C
- UPC: 075114392518
- PPN: T-B-162LRJSB5240-CS782C
- UNSPSC: 39121421
CAD
$247.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter. Wire Size 1/0 Stranded/Compressed, 2/0 Solid/Compact, 53.49 mm2. Bi-Metal Compression Lug. ANSI/IEEE Standard 386. Includes Elbow Connector Housing, Compression Lug, Probe, Lubricant, V.D Cap-Peroxide, Butyl Auto Tape, Contact Adapter Ring, Crimp Chart, Installation Instructions. Boxed Individually.
Features
- 15kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in cable jacket seal. Non-corrosive capacitive test point. Contact Ring Adapter
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG
- Voltage Rating
- 15 kV
- Amperage Rating
- 200 A
- Temperature Rating
- -40 to +65 C
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application15 kv, 200 Amp
Size11.47 inch End to Center of Installation Eye X 8.20 inch width, 2.87 inch Diameter
MaterialHousing - EPDM Rubber
ColorBlack
InsulationYes EPDM Rubber
Environmental ConditionsAll Weather Conditions
