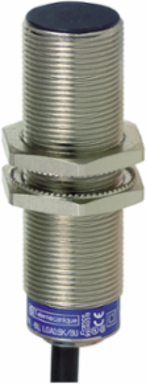

Telemecanique Sensors XS1M18MB250 Inductive proximity sensors XS, inductive sensor XS1 M18, L60mm, brass, Sn5mm, 24...240VAC/DC, cable 2 m
Telemecanique Sensors XS1M18MB250 Inductive proximity sensors XS, inductive sensor XS1 M18, L60mm, brass, Sn5mm, 24...240VAC/DC, cable 2 m
- MPN: XS1M18MB250
- PPN: TES-XS1M18MB250
- UNSPSC: 41111926
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$322.83/ EA
Description
This product is part of the XS range, an offer of inductive proximity sensors. This general purpose inductive proximity sensor in XS1 cylindrical M18 design. It is flush mountable and has a frontal detection face. It supports 5mm nominal sensing distance and 1 normally closed discrete output. It is furnished with 2m cable for electrical connection and 2 LEDs for output state and supply on. It is an inductive proximity sensor with a rated supply voltage of 24V to 210V DC, 24V to 240V AC at 50/60Hz and a switching frequency of ≤2000Hz DC, ≤25Hz AC. It is an IP68 rated product. The enclosure is made of nickel plated brass. Its dimensions are 60mm (Length) x 18mm (Height) and weighs 0.12kg. It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CE, UL, CCC and CSA. It compliant with international standards, certifications in standard and increased range. Ex Osiprox, OsiSense XS and XT inductive and capacitive proximity sensors for non-contact sensing. Inductive proximity sensors technology for non-contact sensing of metal objects up to 60mm.
Specifications
Environment
- Product Certifications
- CCC || CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-7
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1110045
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Maximum Delay Response
- 2 ms
- Operating Zone
- 0-4 mm
- Threaded Length
- 51 mm
- Length
- 60 mm
- Maximum Residual Current
- 1.5 mA open state
- Thread Type
- M18 x 1
- Maximum Delay Recovery
- 4 ms
- Wire Insulation Material
- PVC
- Enclosure Material
- Nickel Plated Brass
- Front Material
- PPS
Status Ledoutput state 1 LED yellow) || supply on 1 LED green)
Maximum Voltage Drop<5.5 V closed state)
MarkingCE
Net Weight0.12 kg
Switching Frequency<= 2000 Hz DC || <= 25 Hz AC
Differential Travel1...15% of Sr
Maximum Delay First Up70 ms
Detection Facefrontal
Cable Composition2 x 0.34 mm²
Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NC
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Sensor Name
- XS1
- Size
- 60 mm
- Ip Degree Of Protection
- IP68 double insulation conforming to IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- 5...300 mA AC overload and short-circuit protection || 5...200 mA DC overload and short-circuit protection
- Wiring Configuration
- 2-wire
- Output Circuit Type
- AC/DC
[Us] Rated Supply Voltage24...210 V DC || 24...240 V AC 50/60 Hz
Type Of Output Signaldiscrete
Cable Length2 m
Materialmetal
Wiring Technique2-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance5 mm
Detector Flush Mounting Acceptanceflush mountable
Sensor Designcylindrical M18
Protection Typeshort-circuit protection multi voltage
Device Application2-wire DC short-circuit protection
