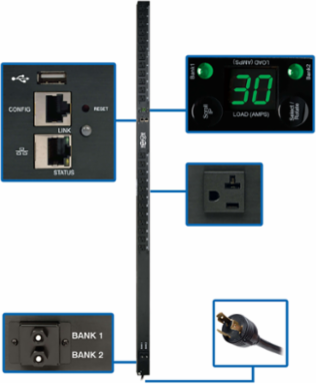

Tripp Lite PDUMNV30LX 2.9kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), L5-30P Plug, 0U Vertical, TAA

2.9kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), L5-30P Plug, 0U Vertical, TAA - https://media.province-electric.com/tripplite/2020q1/9eea4322ad650894514afb9a97967b852dcbb1cf-medium.png

2.9kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), L5-30P Plug, 0U Vertical, TAA

Tripp Lite PDUMNV30LX 2.9kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), L5-30P Plug, 0U Vertical, TAA

MPN: PDUMNV30LX
UPC: 037332203359
PPN: TRP-PDUMNV30LX

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1348.56/ EA

Qty:

Loading add to cart quantity...

Description

2.9kW vertical PDU distributes and monitors single-phase power in an IT or industrial environment. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.

Features

2.9kW 120V single-phase monitored 0U PDU

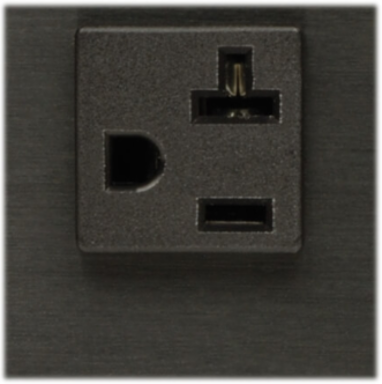

24 NEMA 5-15/20R outlets with cord retention brackets
Built-in Java-free LX Platform interface for 24/7 remote access
Digital ammeter for on-site load monitoring in real time
NEMA L5-30P input with 10 ft. AC power cord
2-year limited warranty

Specifications

Certifications

Certifications: Tested to UL60950-1:2007 (USA), CAN/CSA-C22.2 NO. 60950-1-07 (Canada), FCC Class A Part 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant

Physical

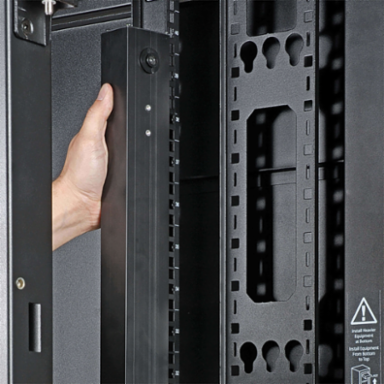

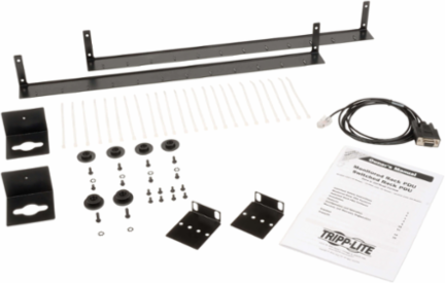

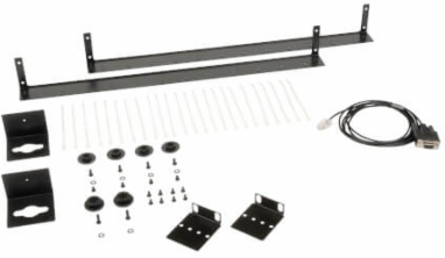

Form Factors Supported: 0U vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks

Shipping Dimensions (hwd / in.): 5.00 x 6.30 x 73.10

Unit Dimensions (hwd / in.): 70 x 2.19 x 1.75

PDU Form FactorVertical (0U)

Shipping Weight (lbs.)13.60

Unit Weight (lbs.)11.5

User Interface, Alerts & Controls

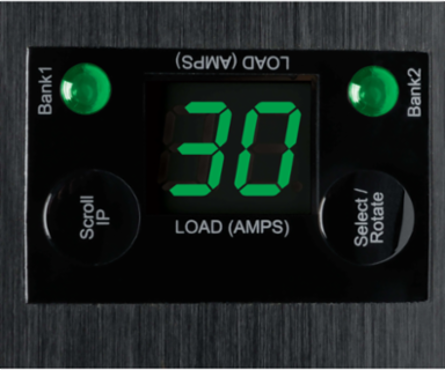

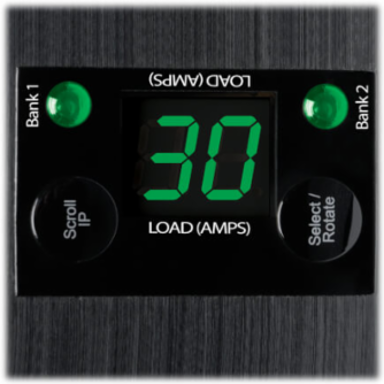

Front Panel LCD Display: Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top

Switches: Press the SCROLL IP button and release to display the configured IP address in 2 digit intervals; Press the SELECT / ROTATE button and release after one second to advance the local display power power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2; Press the SELECT / ROTATE button and release after two seconds to rotate the display 180 degrees

Voltage Measurement Accuracy (Volts): +/-1%

Front Panel LEDsFront panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-12; Bank 2 LED indicates the meter is reporting load level for outlets 13-24; Both LEDs lighted indicates the meter is reporting load level for all outlets combined

Current Measurement Accuracy (Amps)+/-1%

Power Measurement Accuracy (Watts)+/-1%

Input

PDU Input Voltage: 100; 120; 127

Maximum Input Amps: 30

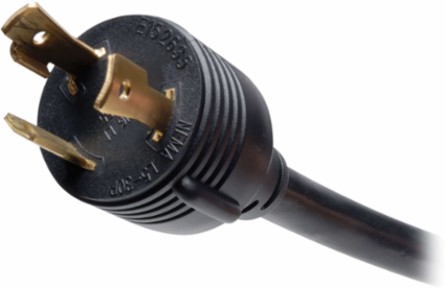

PDU Plug Type: NEMA L5-30P

Input Cord Length (ft.): 10

Recommended Electrical Service30A 120V

Maximum Input Amps DetailsAgency de-rated to 24A continuous

Input PhaseSingle-Phase

Output

Frequency Compatibility: 50 / 60 Hz

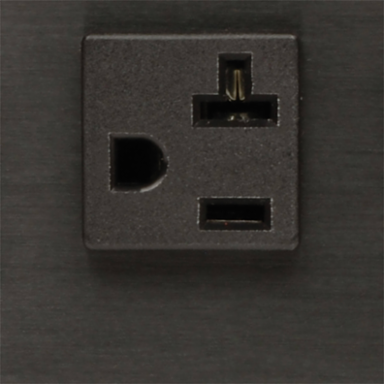

Output Receptacles: (24) 5-15/20R

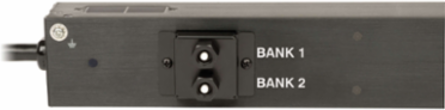

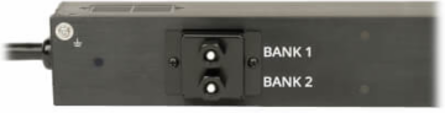

Overload Protection: Two 20A breakers protect 12 outlets each

Output Capacity Details3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 20A max per breakered load bank; 16A max per outlet

Output Nominal Voltage100; 120; 127

Customized Load Management Receptaclesn/a

Communications

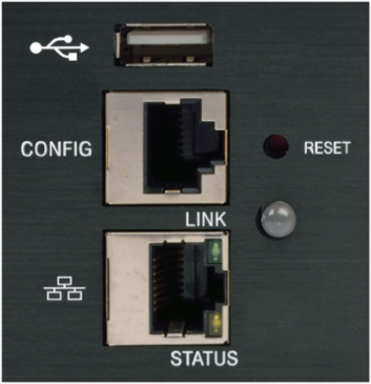

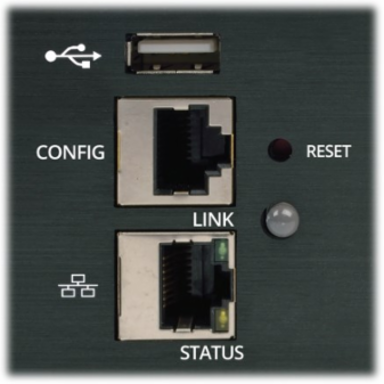

SNMP Compatibility: Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
