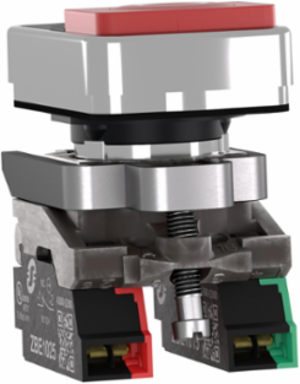

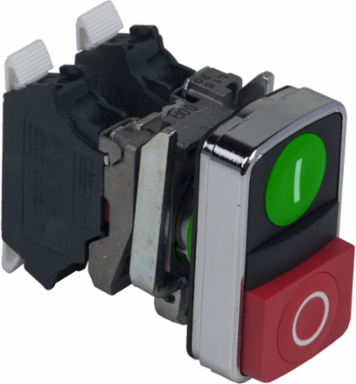

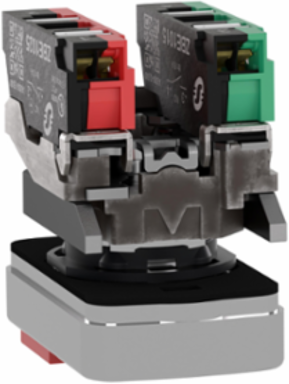

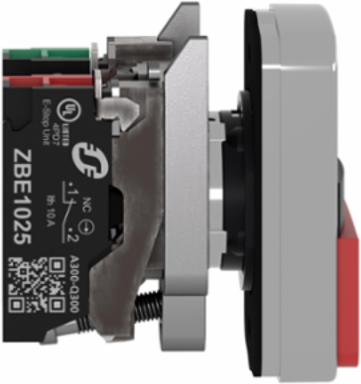

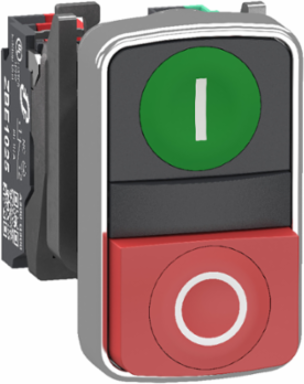

Schneider Electric XB4BL734155 Double headed push button, Harmony XB4, metal, 22mm, 1 green flush marked I + 1 red projecting marked O, 1NO+1NC, push in
Schneider Electric XB4BL734155 Double headed push button, Harmony XB4, metal, 22mm, 1 green flush marked I + 1 red projecting marked O, 1NO+1NC, push in
- MPN: XB4BL734155
- PPN: SCH-XB4BL734155
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$123.02/ EA
Description

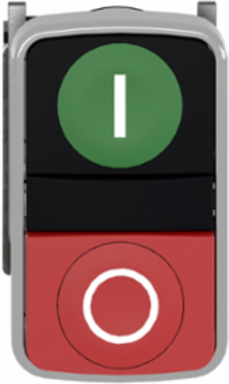

This Harmony XB4 double-headed pushbutton provides a complete 2 button interface to your machines with a single panel cut-out. Its schematic is distinguishable thanks to clear colors and markings (white “I” on green background and white “0” on a red background), minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. It is easily installed into standard 22mm diameter cut-outs and connected with push-in terminal connections. The XB4BL734155 pushbutton is equipped with 1 normally open (NO) and 1 normally closed (NC) contact, featuring a slow break operation. This product is made from metal,it weighs 108g. High performance International standards & certifications (Marine certification, IP65, Type 4, 13 and 4X). Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
- Tool-free installation enabled by push-in connections, ensuring effortless setup
Specifications
Physical Attributes
- Cap Operator Or Lens Color
- green, red
Color Of Markingwhite marking when green, red or black caps, black marking when white caps
Conformance Attributes
- Product Certifications
- EAC, IECEE CB Scheme, CCC, UL, CSA
StandardsIEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, UL 60947-1, UL 60947-5-1, UL 60947-5-5, UL 1059, UL 486E, CSA C22.2 No 60947-1, CSA C22.2 No 60947-5-1, CSA C22.2 No 158, CSA C22.2 No 65, IACS E10
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cap Operator Or Lens Color
- green, red
- Customizable
- 0, no
- Operating Travel
- 1.217 mm NC changing electrical state), 2.05 mm NO changing electrical state), 4.3 mm total travel)
- Shock Resistance
- 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ie Rated Operational Current2
- 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1 kg CO2 eq., 0.1467269276
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.8 kg CO2 eq., 0.8222102017
- Connections Terminals
- push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
- Ie Rated Operational Current5
- 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
- Local Publishable Date
- 2026-01-12
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Bezel Material
- chromium plated metal
- Contact Operation
- slow-break
- Contacts Type And Composition

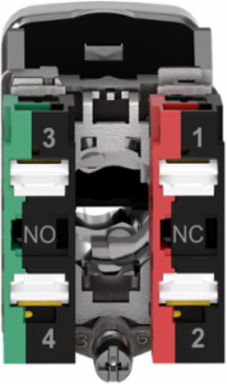

- 1 NO + 1 NC
- Device Short Name
- XB4
- Fixing Collar Material
- zamak
- Mechanical Durability
- 10000000 cycles
- Operators Description
- green ''I'' - red ''O''
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- double-headed push-button
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shape Of Signaling Unit Head
- rectangular
- Sustainable Packaging
- Yes
- Type Of Operator
- spring return
- Ith Conventional Free Air Thermal Current2
- 10 A IEC 60947-5-1
- Uimp Rated Impulse Withstand Voltage2
- 4 kV IEC 60947-1
- Product Repair Index Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Stocking Flag
- N
- Pep Code
- ENVPEP2308035EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Global Commercial Status
- Commercialised
- Ui Rated Insulation Voltage5
- 300 V 3)IEC 60947-1
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Color Of Markingwhite marking when green, red or black caps, black marking when white caps
Operating Force2.25 N NC changing electrical state, 2.45 N NO changing electrical state
Operator Profilegreen flush, I white), red projecting, O white), 1 flush - 1 projecting push-buttons
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The Distribution Phase A40.0151694425, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0232660498, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60.1 kg CO2 eq., 0.12351
Connections Terminals3push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Local Data StatusPublishable
ManufacturerSchneider Electric
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308035EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Compatibility CodeXB4
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Electrical Shock Protection Classclass I conforming to IEC 60536
Head Typestandard

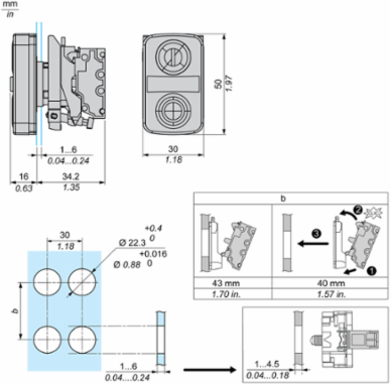

Mounting Diameter22.5 mm
Package Weight Lbs108 g
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB4
ReturnabilityYes
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ui Rated Insulation Voltage2300 V 3)IEC 60947-1
Us Rated Supply Voltage224 V
Medium DescDouble headed push button, Harmony XB4, metal, 22mm, 1 green flush marked I + 1 red projecting marked O, 1NO+1NC, push in
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionThis Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Energy Model Manufacturing A1 A3 2Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Ith Conventional Free Air Thermal Current510 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage54 kV IEC 60947-1
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 1.1308826216
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP2308035EN
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2308035EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of ProtectionNEMA 13, NEMA 4X
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Circularity ProfileENVEOLI2308035EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- double-headed push-button
Range Of ProductHarmony XB4
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 51 mm
Overview Attributes
- Device Presentation
- complete product
