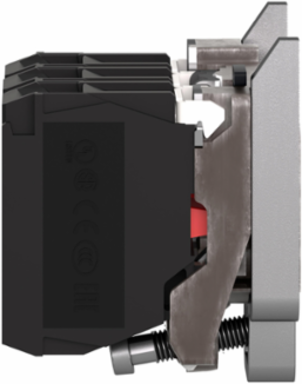

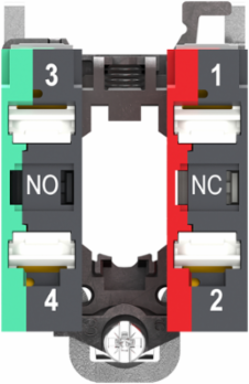

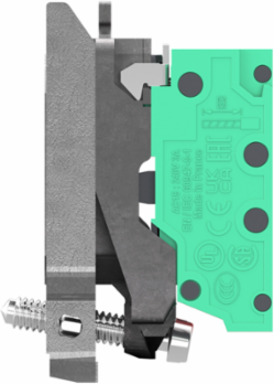

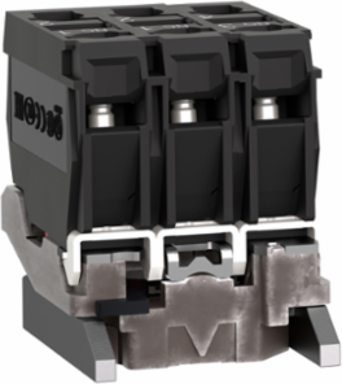

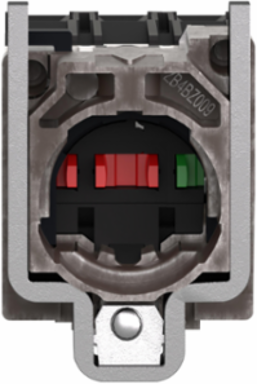

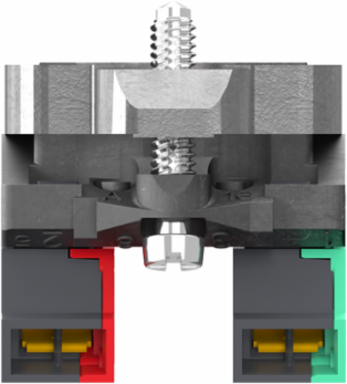

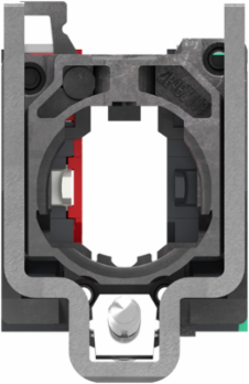

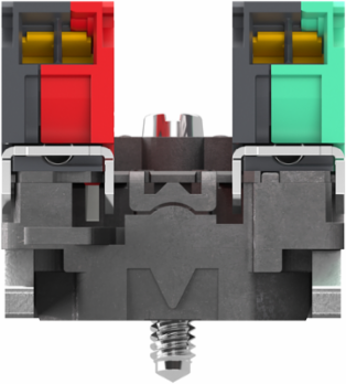

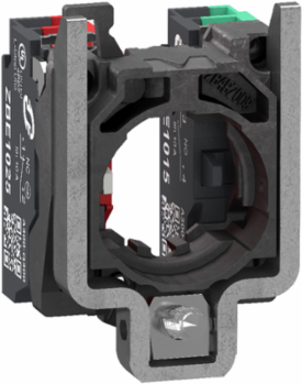

Schneider Electric ZB4BZ1055 Harmony XB4 Single Contact Block with 1NO+1NC, IP20, -40 to 70 C, 30mm Depth

  • MPN: ZB4BZ1055
  • PPN: SCH-ZB4BZ1055
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $35.54

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XB4 single contact block is pre-assembled on a body/collar fixing unit. It features 1 normally open (NO) and 1 normally closed (NC) contacts. It is compatible with Harmony XB4 units. It consists of a single contact block pre-assembled on a fixing collar unit. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This metal product weighs 54g. It is easily installed with push-in terminal connections. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France, United States

    Physical Attributes

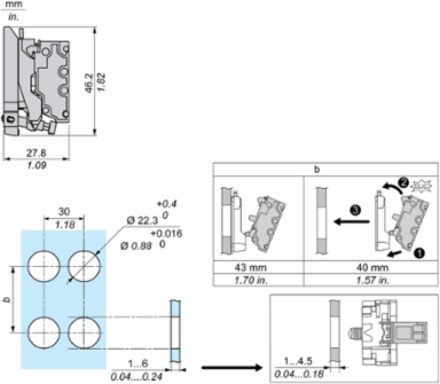

    Cad Overall Depth30 mm
    Cad Overall Width46.2 mm
    Cad Overall Height27.6 mm

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Contacts Usagestandard contacts, standard contacts
    Device Compositioncontact block, fixing collar, contact block
    Shock Resistance25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Certificate AgencyEAC, IECEE CB Scheme, CCC, UL, CSA
    Carbon Footprint Of The Distribution Phase [A4]0.0078462633, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0120341637, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.1 kg CO2 eq., 0.0521873239
    Local Publishable Date2026-03-26
    Stocking FlagN
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2308035EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Percentage Of Recycled Metal Content16 %
    Compatibility CodeZB4
    Contact Operationslow-break

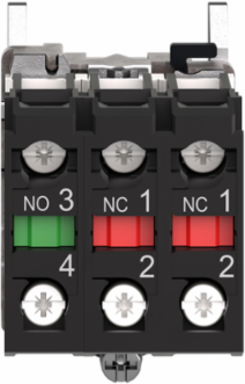

    Contacts Type And Composition1 NO + 1 NC
    Fixing Collar Materialzamak
    Mechanical Durability10000000 cycles
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Or Component Typecomplete body/contact assembly
    Range Of ProductHarmony XB4
    Sale Per Indivisible Quantity1
    Sustainable PackagingYes
    Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    Connections Terminals 8 Connections Terminalspush-in
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThis Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    [Ie] Rated Operational Current6 A 120 V, AC-15, A300 IEC 60947-5-13 A 240 V, AC-15, A300 IEC 60947-5-10.55 A 125 V, DC-13, Q300 IEC 60947-5-10.27 A 250 V, DC-13, Q300 IEC 60947-5-1
    [Ui] Rated Insulation Voltage300 V 3)IEC 60947-1
    Connections - Terminalspush-in, = 1 x 0.34 mm² without wire end ferrule IEC 60947-1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-0.206
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Customizable0, no
    Operating Force2.25 N NC + NO changing electrical state, 2.45 N
    Contacts Composition1 NO + 1 NC
    Terminals Description Iso N°1(11-12)NC, (11-12)NC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0758932384
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.4252811388
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content23 %
    Contact Block Typesingle
    Contacts Materialsilver alloy (Ag/Ni)
    Device Short NameZB4
    Head Typestandard
    Operating Travel1.217 mm NC changing electrical state)2.05 mm NO changing electrical state)4.3 mm total travel)
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTH
    ReturnabilityYes
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint0.6 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP2308035EN
    Pep Verification Date2023-08-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Recyclability Potential In %84
    [Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
    Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)53.000 g
    Warranty (In Months)18
    Customs Code8536509031

    Environment Attributes Main

    Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level16 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.5732421282
    Environmental DisclosureENVPEP2308035EN
    Ip Degree Of ProtectionIP20 IEC 60529
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-08-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2308035EN
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2308035EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typecomplete body/contact assembly
    Range Of ProductHarmony XB4

    ETIM
