Tripp Lite B004-2DUA2-K 2-Port Dual Monitor DVI KVM Switch, TAA, GSA with Audio and USB 2.0 Hub, Cables included
Tripp Lite B004-2DUA2-K 2-Port Dual Monitor DVI KVM Switch, TAA, GSA with Audio and USB 2.0 Hub, Cables included
- MPN: B004-2DUA2-K
- UPC: 037332180322
- PPN: TRP-B004-2DUA2-K
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$550.28/ EA
Description
Control two computers with Dual Head DVI Video Cards via a single set of Keyboard, Mouse, and Dual Displays
Features

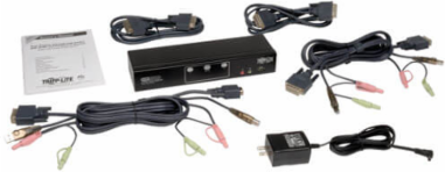

- 2-Port Dual Display DVI KVM Switch with Audio and USB 2.0 Hub, Cables included
- Supports digital video resolutions up to 2560 x 1600 and analog resolutions up to 2048 x 1536
- Switch between connected computers via front panel pushbuttons, keyboard hotkeys, and a function that allows for switching via your mouse's scroll wheel
- Built-in 2-Port USB 2.0 hub allows for the sharing of USB devices (CAC Card Reader, flash drives, web cams, powered USB hub, etc.) amongst the connected computers
- 3.5 mm Mini Stereo jacks provide Speaker (2.1 stereo sound) and Microphone support to the connected computers
- Quad-View Mode allows for computers with three- or four-head video cards to share KVM, audio and USB peripherals by connecting two Dual Display/Monitor KVM switches together
- Quick installation without the need for software
- Compatible with all major operating systems; Windows, Mac, Linux, Sun
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
Specifications
Features & Specifications
- Number of Users
- 1
- Cat5 KVM Switch
- No
NIAP-Certified SecureNo
TechnologyUSB 2.0 (High Speed); DVI; USB; Stereo Audio
Certifications
- Certifications
- Compliant with CE, FCC, RoHS, REACH and the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Connections
- Ports
- 2
- Included KVM Cable (Equipment Side) - Connector 1
- DVI-D Dual Link (Male)
- Included KVM Cable (Equipment Side) - Connector 3
- (x2) 3.5 mm. (Male)
PC/Server ConnectionsDVI; USB
Included KVM Cable (Equipment Side) - Connector 2USB A (Male)
Local Console Ports - Port 3(x2) 3.5 mm. (Female)
Physical
- Color
- Black
- Shipping Weight (lbs.)
- 5.10
- Unit Weight (lbs.)
- 1.23
Shipping Dimensions (hwd / in.)4.00 x 12.75 x 8.50
Unit Dimensions (hwd / in.)1.75 x 10.25 x 3
Communications
- Port Control
- Push Buttons, Hotkeys
IP Remote AccessNo
Environmental
- Storage Temperature Range
- -4 to 140 F (-20 to 60 C)
- Operating Temperature
- 32 to 122 F (0 to 50 C)
Relative Humidity0 to 80% RH, Non-Condensing
Overview
- UPC Code
- 037332180322
- Max CPU
- 2
AC AdapterInput: 100-240V, 50/60Hz, 0.5A Output: 5.3V, 2.4A
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
