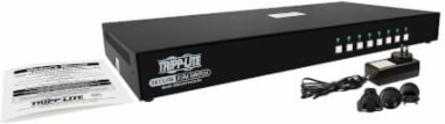

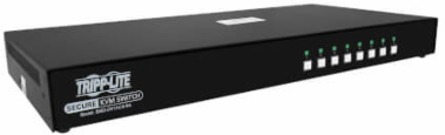

Tripp Lite B002DV1AC8N4 Secure KVM Switch, 8-Port, Single Head, DVI-I, NIAP PP4.0, Audio, CAC, TAA
- MPN: B002DV1AC8N4
- UPC: 037332274328
- PPN: TRP-B002-DV1AC8-N4
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Secure KVM Switch, 8-Port, Single Head, DVI to DVI, NIAP PP4.0, Audio, CAC, TAA
Features
- External power supply with NEMA 1-15P plug (Input: 100-240V, 50/60 Hz, 1.3A; Output: 12V 3A)
- Includes 4 interchangeable power supply heads (US, UK, EU, Australia)
Documentation & Downloads
Specifications
Dimensions
- Number of Ports
- 8
- Number of USB Hub Ports
- 3
- Computer Monitor Interface
- DVI-I Dual-Link
- Side A - Connector 1
- 3.5mm (Female)
- Side A - Connector 3
- (16) USB-B (Female)
- Side B - Connector 2
- (1) DVI-I Dual Link (Female)
- PC/Server Connections
- DVI; USB
- LED Indicators
- (x8) Green / Port Selection/CAC/EDID (Push-Button), (x1) Green / Video Console, (x1) Green / CAC Console
Number of Users1
AC Power Adapter Cord Length5 ft
Console Monitor InterfaceDVI-I Dual-Link
Side A - Connector 2(8) DVI-I Dual Link (Female)
Side B - Connector 1(1) 3.5mm (Female)
Side B - Connector 3(3) USB-A (Female)
Port SelectionPushbutton
Material
- Color
- Black
Material of ConstructionMetal
Compliance
- Product Warranty Period
- 3-year limited warranty
Reference
- Technology
- DVI
AC Power Adapter PlugAS/NZS 3112 Australia; BS 1363 UK; CEE 7/7 Schuko; NEMA 1-15P North America
Performance
- Max Supported Video Resolution
- 2560 x 1600 @ 60Hz
- AC Power Adapter Input
- 100-240V / 50/60Hz / 1.3A
- Power Source Type
- AC Adapter
- Storage Temperature Range
- 4° to 140°F (-20° to 60°C)
USB SpecificationUSB 1.1 (up to 12 Mbps)
AC Power Adapter Output12V / 3A
Operating Temperature Range32° to 104°F (0° to 40°C)
Relative Humidity0-80% non-condensing
