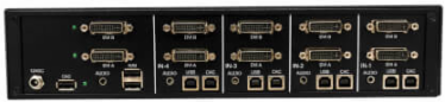

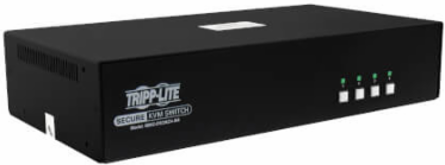

Tripp Lite B002DV2AC4N4 Secure KVM Switch, 4-Port, Dual Head, DVI-I, NIAP PP4.0, Audio, CAC, TAA
- MPN: B002DV2AC4N4
- UPC: 037332274342
- PPN: TRP-B002-DV2AC4-N4
CAD
$2712.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Secure KVM Switch, 4-Port, Dual Head, DVI to DVI, NIAP PP4.0, Audio, CAC, TAA
Features

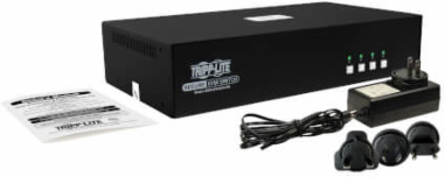

- External power supply with NEMA 1-15P plug (Input: 100-240V, 50/60 Hz, 1.3A; Output: 12V 3A); includes 4 interchangeable power supply heads (US, UK, EU, Australia)
Documentation & Downloads
Specifications
Dimensions
- Number of Ports
- 4
- AC Power Adapter Cord Length
- 5 ft
- Console Monitor Interface
- DVI-I Dual-Link
- Side A - Connector 2
- (4) DVI-I Dual Link (Female)
- Side B - Connector 1
- (2) 3.5mm (Female)
- Side B - Connector 3
- (4) USB-B (Female)
- Port Selection
- Pushbutton
Number of Users1
Computer Monitor InterfaceDVI-I Dual-Link
Side A - Connector 13.5mm (Female)
Side A - Connector 3(3) USB-A (Female)
Side B - Connector 2(4) DVI-I Dual Link (Female)
PC/Server ConnectionsDVI; USB
LED Indicators(x2) Green / Port Selection/CAC/EDID (Push-Button), (x2) Green / Video Console, (x1) Green / CAC Console
Material
- Color
- Black
Material of ConstructionMetal
Compliance
- Product Warranty Period
- 3-year limited warranty
Reference
- Technology
- DVI
AC Power Adapter PlugAS/NZS 3112 Australia; BS 1363 UK; CEE 7/7 Schuko; NEMA 1-15P North America
Performance
- Max Supported Video Resolution
- 2560 x 1600 @ 60Hz
- AC Power Adapter Input
- 100-240V / 50/60Hz / 1.3A
- Power Source Type
- AC Adapter
- Storage Temperature Range
- 4° to 140°F (-20° to 60°C)
USB SpecificationUSB 1.1 (up to 12 Mbps)
AC Power Adapter Output12V / 3A
Operating Temperature Range32° to 104°F (0° to 40°C)
Relative Humidity0-80% non-condensing
