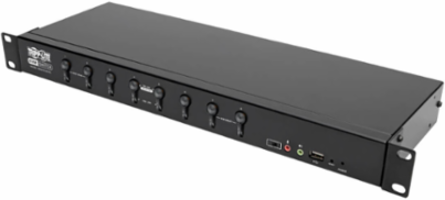

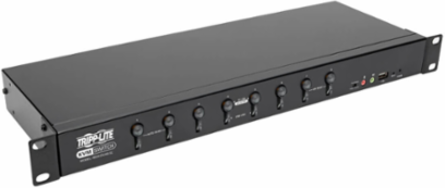

Tripp Lite B024-DUA8-SL 8-Port DVI/USB KVM Switch with Audio and USB 2.0 Peripheral Sharing, 1U Rack-Mount, Single-Link, 1920 x 1200 (1080p)
Tripp Lite B024-DUA8-SL 8-Port DVI/USB KVM Switch with Audio and USB 2.0 Peripheral Sharing, 1U Rack-Mount, Single-Link, 1920 x 1200 (1080p)
- MPN: B024-DUA8-SL
- UPC: 037332205117
- PPN: TRP-B024-DUA8-SL
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1450.57/ EA
Description
Flexible 8-port KVM switch allows you to control 8 computers with audio using a single keyboard, mouse and DVI monitor. Ideal for IT managers needing centralized access to digital and analog servers.
Features
- Cascade up to 3 levels and control up to 512 computers at once
- Multi-view mode—stack up to 4 units, display up to 4 monitors
- On-Screen Display (OSD) in 8 languages for international use
- Dual-tier password protection for superior security
- Upgradable firmware to ensure up-to-date operation
- 3-year limited warranty
Specifications
Remote Access
- Virtual Media Speed
- N/A
Features & Specifications
- Number of Users
- 1
- On-Screen Display (OSD)
- Yes
- Max Supported Video Resolution
- Digital - 1920 x 1200; Analog - 2048 x 1536
- Number of USB Hub Ports
- 2
- Audio Specification
- 2.1 channel surround sound
- Cat5 KVM Switch
- No
NIAP-Certified SecureNo
Port SelectionPushbutton; Hotkey; OSD
USB Hub PortsYes
USB SpecificationUSB 2.0 (up to 480 Mbps)
Driver RequiredNo
TechnologyUSB 2.0 (High Speed); DVI; USB; Stereo Audio
Certifications
- Certifications
- Tested to FCC, ROHS
Port Expansion
- Max Distance (Between any 2 Units)
- 15-FT
Connections
- Ports
- 8
- Side A - Connector 1
- (4) 3.5MM (FEMALE); DVI-I (FEMALE); HD15 (FEMALE); (2) USB A (FEMALE)
- Computer Keyboard and Mouse Interface
- USB
- Console Keyboard and Mouse Interface
- USB
- Connector Plating
- Nickel
PC/Server ConnectionsDVI; USB
Side B - Connector 1(16) 3.5MM (FEMALE); (8) DVI-I (FEMALE); (8) USB B (FEMALE)
Computer Monitor InterfaceDVI-I Single-Link
Console Monitor InterfaceDVI-I Single-Link; VGA
Physical
- Color
- Black
- Rackmountable
- Yes
- Unit Weight (lbs.)
- 6.2
Material of ConstructionMetal
Unit Dimensions (hwd / in.)1.73 x 17.2 x 6.3
User Interface, Alerts & Controls
- LED Indicators
- (x8) Connection (Dim Orange), KVM and Audio Focus (Bright Orange), Reset, Auto Scan or Firmware Upgrade Mode (Flash); (x8) USB Hub Focus (Green); (x1) Power (Green)
Input
- Voltage Compatibility (VAC)
- 100-250
- Input Current
- 0.5A
- External Power Supply Output Specs (V / A)
- 5.3V / 2.4A
- External Power Supply Cord Length (m.)
- 1.5
- External Power Supply Certifications
- FCC; UL; cUL; PSE; BSMI; RoHS
Input Frequency50/60 Hz
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.5A
External Power Supply Cord Length (ft.)5
External Power Supply Plug(s)NEMA 1-15P North America
Bus PoweredNo
Communications
- Port Control
- Push Buttons, Hotkeys, OSD
IP Remote AccessNo
Environmental
- Operating Temperature Range
- 32 to 122 F (0 to 50 C)
- Relative Humidity
- 0 to 80% RH, Non-Condensing
Storage Temperature Range-4 to 140 F (-20 to 60 C)
Power Consumption (Watts)5.3V, 6.36W
Overview
- UPC Code
- 037332205117
- Max CPU
- 512
AC AdapterInput: 100-240V, 50/60Hz, 0.5A / Output: 5.3V, 2.4A
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
Downloads
