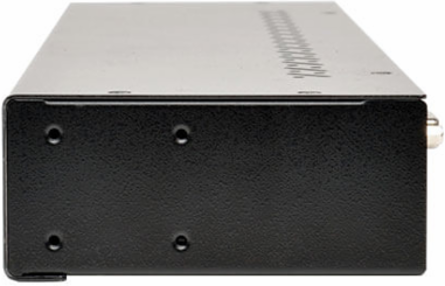

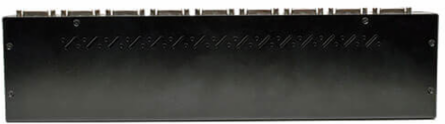

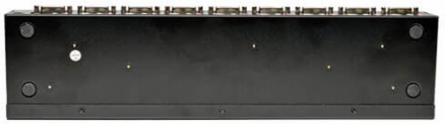

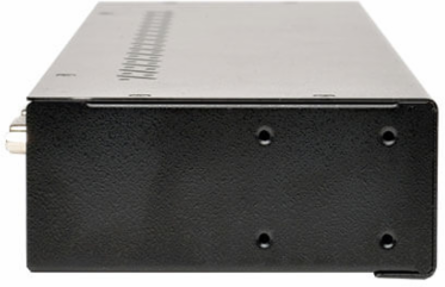

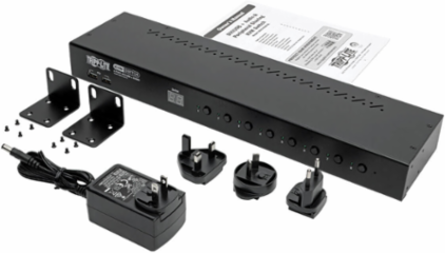

Tripp Lite B043-DUA8-SL 8-Port 1U Rack-Mount DVI / USB KVM Switch with Audio and 2-port USB Hub
Tripp Lite B043-DUA8-SL 8-Port 1U Rack-Mount DVI / USB KVM Switch with Audio and 2-port USB Hub
- MPN: B043-DUA8-SL
- UPC: 037332182395
- PPN: TRP-B043-DUA8-SL
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1565.54/ EA
Description
8-Port 1U Rack-Mount DVI / USB KVM Switch with Audio and 2-port USB Hub
Features
- NetController 8-Port, 1U rackmount KVM switch
- Control 8 computers via a single DVI monitor and USB keyboard/mouse
- Control up to 64 computers by cascading up to 8 additional B043-DUA8-SL KVM switches
- Compatible with all major operating systems
- 3-year limited warranty
Specifications
Features & Specifications
- Number of Users
- 1
- On-Screen Display (OSD)
- No
- Max Supported Video Resolution
- 1920 x 1200 @60Hz
- Number of USB Hub Ports
- 2
- Driver Required
- No
- Technology
- DVI; Stereo Audio; USB; USB 2.0 (High Speed)
NIAP-Certified SecureNo
Port SelectionPushbutton; Hotkey
USB Hub PortsYes
USB SpecificationUSB 2.0 (up to 480 Mbps)
Cat5 KVM SwitchNo
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Port Expansion
- Max Distance (Between any 2 Units)
- 15ft (4.6m)
Max Number of Ports (Entire Chain)64
Connections
- Ports
- 8
- Side A - Connector 1
- (8) DVI-I (FEMALE)
- Side A - Connector 3
- (16) 3.5MM (FEMALE)
- Side B - Connector 2
- (2) USB A (FEMALE)
- Computer Keyboard and Mouse Interface
- USB
- Console Keyboard and Mouse Interface
- USB
- Connector Plating
- Nickel
PC/Server ConnectionsDVI; USB
Side A - Connector 2(8) USB B (FEMALE)
Side B - Connector 1DVI-I (FEMALE)
Side B - Connector 3(2) 3.5MM (FEMALE)
Computer Monitor InterfaceDVI-I Single-Link
Console Monitor InterfaceDVI-I Single-Link
Physical
- Color
- Black
- Rackmountable
- Yes
- Shipping Weight (lbs.)
- 4.90
- Unit Packaging Type
- Box
Material of ConstructionSECC
Shipping Dimensions (hwd / in.)2.80 x 17.30 x 11.50
Unit Dimensions (hwd / in.)1.8 x 16 x 3.9
Unit Weight (lbs.)3.00
User Interface, Alerts & Controls
- LED Indicators
- Green (Selected PC)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 9V / 2A
- External Power Supply DC Barrel Connector Specs
- OD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve
- External Power Supply Certifications
- CE; FCC; UL; cUL; TUV; GS; BS; RCM; CB
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.8A
External Power Supply Cord Length (ft.)6
External Power Supply Plug(s)NEMA 1-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
Communications
- IP Remote Access
- No
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 0%-90% RH, Non-Condensing
- Power Consumption (Watts)
- 8.7
Storage Temperature Range-4 to 140 F (-20 to 60 C)
BTUs29.7 BTU/Hr
Overview
- UPC Code
- 037332182395
- Max CPU
- 64
AC AdapterInput: 100-240V, 50/60Hz, 0.8A / Output: 9V, 2A
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
