Tripp Lite B004-2DUA4-K 4-Port Dual Monitor DVI KVM Switch with Audio & USB 2.0 Hub, DVI-D Dual Link Support
- MPN: B004-2DUA4-K
- UPC: 037332180339
- PPN: TRP-B004-2DUA4-K
CAD
$775.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control four computers with Dual Head DVI Video Cards via a single set of Keyboard, Mouse, and Dual Displays
Features

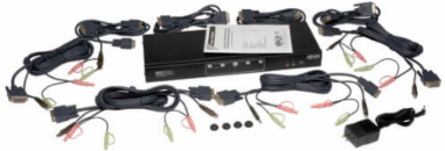

- 4-Port Dual Display DVI KVM Switch with Audio and USB 2.0 Hub, Cables included
- Supports both Dual Link digital video resolutions up to 2560 x 1600, and analog resolutions up to 2048 x 1536

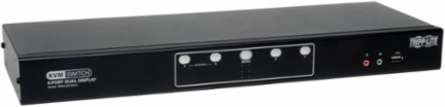

- Switch between connected computers via front panel pushbuttons, keyboard hotkeys, and a function that allows for switching via your mouse's scroll wheel
- Built-in 2-Port USB 2.0 hub allows for the sharing of USB devices (flash drives, web cams, powered USB hub, etc.) amongst the connected computers
- 3.5 mm Mini Stereo jacks provide Speaker (2.1 stereo sound) and Microphone support to the connected computers
- Quad-View Mode allows for computers with three- or four-head video cards to share KVM, audio and USB peripherals by connecting two Dual Display/Monitor KVM switches together
- Quick installation without the need for software
- Compatible with all major operating systems; Windows, Mac, Linux, Sun
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
Documentation & Downloads
Specifications
Additional
| Ports | 4 |
|---|---|
| Dual Link Digital Resolution | 2560 x 1600 |
| USB Hub | 2-Port USB 2.0 |
| Compatibility | Windows, Mac, Linux, Sun |
| Power Output | 5.3V, 2.4A |
| EDID Support | Yes |
| Technology | USB 2.0 (High Speed); DVI; USB; Stereo Audio |
| Port Control | Push Buttons, Hotkeys |
| KVM Cable Type | DVI-D Dual Link / USB |
| Unit Weight | 5.11 lbs |
| Included KVM Cable (Equipment Side) - Connector 2 | USB A (Male) |
| Local Console Ports - Port 3 | (x2) 3.5 mm (Female) |
| Supports VGA Monitors | Yes, via P556-Series DVI to VGA adapter cable |
| Warranty | 3-year limited |
| Supported Computers | 4 |
|---|---|
| Analog Resolution | 2048 x 1536 |
| Audio Support | 3.5 mm Mini Stereo (Speaker 2.1 stereo, Microphone) |
| Power Input | 100-240V, 50/60Hz, 0.5A |
| Switch Control | Push Buttons, Hotkeys, Mouse Scroll Wheel |
| HDCP Compliance | Yes |
| Number of Users | 1 |
| KVM Cable Length | 6 ft |
| Unit Dimensions (HxWxD) | 1.75 x 17 x 6 in |
| Included KVM Cable (Equipment Side) - Connector 1 | DVI-D Dual Link (Male) |
| Included KVM Cable (Equipment Side) - Connector 3 | (x2) 3.5 mm (Male) |
| PC/Server Connections | DVI; USB |
| Compliance | CE, FCC, RoHS, REACH, Federal Trade Agreements Act (TAA) |
| Color | Black |
