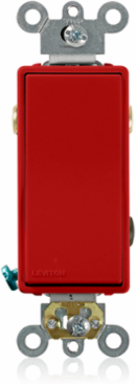

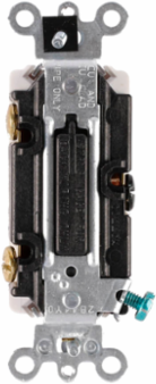

Leviton 5623-2R 20 Amp, Rocker Switch, 3-Way, Quiet Switch, Commercial Spec Grade

20 Amp, Rocker Switch, 3-Way, Quiet Switch, Commercial Spec Grade
20 Amp, Rocker Switch, 3-Way, Quiet Switch, Commercial Spec Grade
  • MPN: 5623-2R
  • UPC: 078477794128
  • PPN: LEV-5623-2R

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$25.12/ EA

Description

20 Amp, 120/277 Volt, Decora Plus Rocker 3-Way AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - Red

Features

  • Decora® brand Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.

Specifications

Standards and Certifications

ANSI
C-73
NEMA
WD-1 & WD-6
UL Standard
UL 20
CSA C22.2 No. 111File #152105
NOM057
Warranty10-Year Limited

Material Specifications

Actuator Material
Thermoplastic
Color
Red
Body MaterialThermoplastic
Strap MaterialSteel

Mechanical Specifications

Product ID
Stamped on Strap
Terminal Accom.
14-#10 AWG back wired; #14-#12 AWG side wired
Termination
Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot Black-Hot White-Neutral Green-Gnd

Specifications

Country of Origin
Mexico
RoHS CompliantFalse

Product Features

Brand
Decora Plus
Function
3-Way
Device TypeRocker Switch
GradeCommercial Specification Grade

Environmental Specifications

Flammability
Rated V-2 per UL 94
Operating Temperature-40°C to 65°C

Electrical Specifications

Amperage
20 A
Endurance
50,000 cycles minimum
Overload UL20 Test
100 cycles of OL at 4.8 times rated current
Voltage
120/277 VAC
Dielectric VoltageWithstands 1500V for 1 minute
GroundingSelf-Grounding
Temperature RiseMaximum 30 degrees C rise

AC Horsepower Ratings

HP Rating
1HP-120V 2HP-240V-277V
Max. Amperage16 Amp
