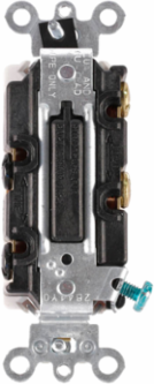

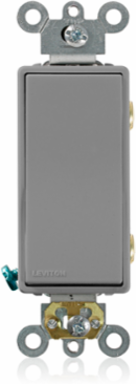

Leviton 5622-2GY 20 Amp Double-Pole Rocker Switch, Gray, 120/277 Volt, Commercial Spec Grade
Leviton 5622-2GY 20 Amp Double-Pole Rocker Switch, Gray, 120/277 Volt, Commercial Spec Grade
- MPN: 5622-2GY
- UPC: 078477515150
- PPN: LEV-5622-2GY
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$54.62/ EA
Description
20 Amp, 120/277 Volt, Decora Plus Rocker Double-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - Gray
Features
- Decora® brand Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL Fed Spec WS896E
- File #E7458
CSA C22.2 No. 111File #152105
NOM057
UL StandardUL 20
Material Specifications
- Actuator Material
- Thermoplastic
- Color
- Gray
- Grounding Screw
- Plated Steel
- Terminal Screws
- Brass
Body MaterialThermoplastic Polyester
Ground ClipsBrass
Strap MaterialSteel
Mechanical Specifications
- Product ID
- Stamped on Strap
- Terminal Accom.
- 14-#10 AWG back wired; #14-#12 AWG side wired
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot Black-Hot White-Neutral Green-Gnd
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Decora Plus
- Function
- Double-Pole
Device TypeRocker Switch
GradeCommercial Specification Grade
Warranty
- Warranty
- 10-Year Limited
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 65°C
Electrical Specifications
- Amperage
- 20 A
- Endurance
- 50,000 cycles minimum
- Overload UL20 Test
- 100 cycles of OL at 4.8 times rated current
- Voltage
- 120/277 VAC
Dielectric VoltageWithstands 1500V for 1 minute
GroundingSelf-Grounding
Temperature RiseMaximum 30 degrees C rise
AC Horsepower Ratings
- HP Rating
- 1HP-120V 2HP-240V
