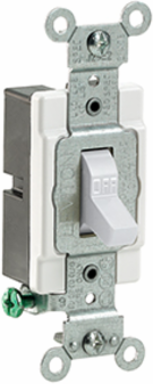

Leviton CS120-2W 20 Amp Single-Pole Toggle Switch, 120/277 Volt, Commercial Spec Grade, White
- MPN: CS120-2W
- UPC: 078477815748
- PPN: LEV-CS120-2W
CAD
$4.59
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired, - White
Features
- Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Horsepower Rating
- 1 HP-120V, 2 HP-240V-277V
- Operating Temperature
- -40°C to 65°C
- Dielectric Voltage
- 1500 V
- Screw Terminal Torque
- 14-18 in-lbs
- Termination
- Side Wire
- Color
- White
- Base Material
- PBT
- Actuator Material
- Thermoplastic
- Strap Material
- Steel
- Toggle Material
- Polycarbonate
- Flammability Rating
- V-2 per UL94
- Warranty
- 10-Year Limited
- UL Standard
- UL 20
- NEMA
- WD-1 & WD-6
- NOM
- 057
Voltage120/277 VAC
FunctionSingle-Pole
Temperature RiseMaximum 30°C rise
Device TypeToggle Switch
Terminal Accommodation14-12 AWG
ContactsSilver-Cadmium .031 Thick
GradeCommercial Specification Grade
Body MaterialThermoplastic
Cover MaterialNylon
Terminal ScrewsSteel 8-32
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Country of OriginUnited States
ANSIC-73
CSA CertificationFile #152105
UL Fed SpecFile #E7458
RoHS CompliantFalse
