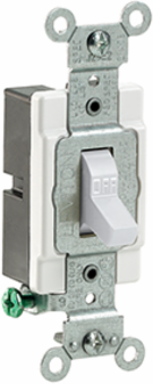

Leviton CS115-2W 15 Amp Single-Pole Toggle Switch, Quiet, 120/277 VAC, Commercial Specification Grade
- MPN: CS115-2W
- UPC: 078477815540
- PPN: LEV-CS115-2W
CAD
$3.79
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired, - White
Features
- Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- HP Rating
- 1/2 HP-120V, 2 HP-240V-277V
- Operating Temperature
- -40°C to 65°C
- Termination
- Side Wire
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Grade
- Commercial Specification Grade
- Material
- Thermoplastic, PBT, Nylon, Steel, Polycarbonate, Silver-Cadmium
- Base Material
- PBT
- Strap Material
- Steel
- Cover Material
- Nylon
- Flammability
- V-2 per UL94
- CSA C22.2 No. 111
- File #152105
- NEMA
- WD-1 & WD-6
- UL Standard
- UL 20
- Color
- White
Voltage120/277 VAC
FunctionSingle-Pole
Temperature RiseMaximum 30°C rise
Terminal Accom.14-12 AWG
Terminal ScrewsSteel 8-32
Device TypeToggle Switch
GroundingYes
PolycarbonateToggle
Body MaterialThermoplastic
Actuator MaterialThermoplastic
ContactsSilver-Cadmium .031 Thick
ANSIC-73
NOM057
UL Fed Spec WS896EFile #E7458
RoHS CompliantFalse
Country of OriginUnited States
