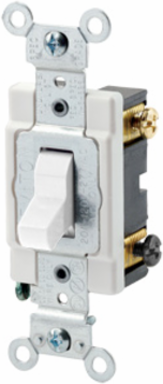

Leviton CSB2-20W 20 Amp Double-Pole Toggle Switch, 120/277 Volt, Commercial Spec Grade
- MPN: CSB2-20W
- UPC: 078477240793
- PPN: LEV-CSB2-20W
CAD
$8.04
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20 Amp, 120/277 Volt, Toggle Double-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Back & Side Wired - White
Features
- Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Function
- Double-Pole
- Max Amperage
- 16 Amp
- Operating Temperature Range
- -40°C to 65°C
- Device Type
- Toggle Switch
- Termination
- Back or Side Wire
- Terminal Screws
- Steel 8-32
- Grade
- Commercial Specification Grade
- Contacts Material
- Silver-Cadmium .031 Thick
- Toggle Material
- Polycarbonate
- Cover Material
- Nylon
- Base Material
- PBT
- Certification
- ANSI C-73, CSA C22.2 No. 111 (File #152105), NEMA WD-1 & WD-6, NOM 057, UL Standard UL 20, UL Fed Spec WS896E (File #E7458)
- Country of Origin
- Mexico
Voltage120/277 VAC
Horsepower Rating1HP-120V, 2HP-240V/277V
Temperature RiseMaximum 30 degrees C rise
Dielectric Voltage Withstand1500V for 1 minute
Terminal Accommodation14-#10 AWG back wired; #14-#12 AWG side wired
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
MaterialThermoplastic, PBT, Nylon, Steel, Polycarbonate
Flammability RatingV-2 per UL94
Strap MaterialSteel
Body MaterialThermoplastic
Actuator MaterialThermoplastic
RoHS CompliantFalse
