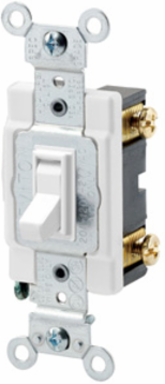

Leviton 54521-2W 20 Amp Toggle Switch, Single-Pole, Quiet, Commercial Spec Grade, 120/277VAC
- MPN: 54521-2W
- UPC: 078477125175
- PPN: LEV-54521-2W
CAD
$17.50
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20 Amp, 120/277 Volt, Toggle Framed Single-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired, - White
Features
- Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 & WD-6 |
| UL Fed Spec WS896E | File #E7458 |
| Warranty | 10-Year Limited |
| CSA C22.2 No. 111 | File #152105 |
|---|---|
| NOM | 057 |
| UL Standard | UL 20 |
Material Specifications
| Actuator Material | Thermoplastic |
|---|---|
| Body Material | Thermoplastic |
| Contacts | Silver-Cadmium .031 Thick |
| Strap Material | Steel |
| Toggle | Polycarbonate |
| Base Material | PBT |
|---|---|
| Color | White |
| Cover Material | Nylon |
| Terminal Screws | Steel 8-32 |
Mechanical Specifications
| Product ID | Stamped on Strap |
|---|---|
| Terminal Accom. | 14-12 AWG |
| Termination | Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| Device Type | Toggle Switch |
|---|---|
| Function | Single-Pole |
| Warranty | 10-Year Limited |
| Feature 3 | Framed |
|---|---|
| Grade | Commercial Specification Grade |
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 65°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Max. Amperage | 16 Amp |
| Voltage | 120/277 VAC |
| Dielectric Voltage | Withstands 1500V for 1 minute |
|---|---|
| Temperature Rise | Maximum 30 degrees C rise |
AC Horsepower Ratings
| HP Rating | 1HP-120V 2HP-240V-277V |
|---|
