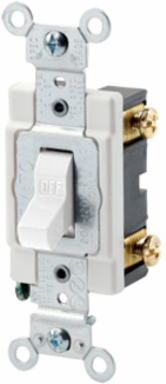

Leviton CSB1-20W 20 Amp Toggle Switch, Single-Pole, 120/277 Volt, Commercial Spec Grade
- MPN: CSB1-20W
- UPC: 078477240304
- PPN: LEV-CSB1-20W
CAD
$8.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Back & Side Wired, - White
Features
- Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- AC Horsepower Rating
- 1 HP-120V, 2 HP-240V-277V
- Temperature Rise
- Maximum 30 degrees C rise
- Device Type
- Toggle Switch
- Screw Terminal Torque
- 14-18 in-lbs
- Flammability
- Rated V-2 per UL94
- Compliance
- ANSI C-73, CSA C22.2 No. 111 File #152105, NEMA WD-1 & WD-6, NOM 057, UL Fed Spec WS896E File #E7458, UL 20
- Color
- White, Brown
- Grade
- Commercial Specification Grade
- Termination
- Back or Side Wire
Voltage120/277 VAC
Temperature Range-40C to 65C
FunctionSingle-Pole
Terminal Accom.14-#10 AWG back wired; #14-#12 AWG side wired
MaterialThermoplastic (Actuator, Body), PBT (Base), Nylon (Cover), Steel (Strap and Terminal Screws), Polycarbonate (Toggle), Silver-Cadmium .031 Thick (Contacts)
Dielectric VoltageWithstands 1500V for 1 minute
RoHS CompliantFalse
Country of OriginUnited States
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Warranty10-Year Limited
