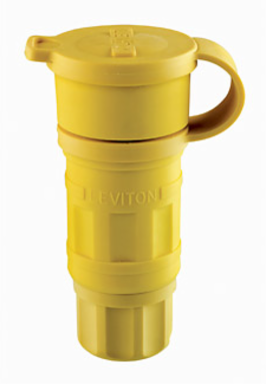

Leviton 15W33 Wetguard Watertight Straight Blade Connector, 20 Amp, 125 Volt, NEMA 5-20R, IP66/IP67/IP69K
- MPN: 15W33
- UPC: 078477848265
- PPN: LEV-15W33
CAD
$56.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Connector, Straight Blade, Industrial Grade, Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
- ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
- MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
- DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NOM | 057 |
| Warranty | Limited Lifetime Warranty |
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| UL | 498 |
Material Specifications
| Assembly Screws | Stainless Steel 300 |
|---|---|
| Body Material | EPTR Rubber |
| Compression Nut, Strain Relief | Nylon |
| Wire Module | Nylon |
| Blades/Contacts | Nickel-Plated Brass |
|---|---|
| Bushing | Santoprene TPV |
| Terminal Screws | Electroless Nickel-coated Brass |
Mechanical Specifications
| Cord Grip Range (in) | .234-.687 |
|---|---|
| Terminal Accom. | 18-10 AWG |
| Torque Range | 12-14 in-lbs |
| Cord Range | .375 - .655 |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| Brand | Wetguard |
|---|---|
| Device Type | Straight Blade Connector |
| Color | Yellow |
|---|---|
| NEMA | 5-20R |
Environmental Specifications
| Environment | Wet |
|---|---|
| IP Rating | IP66, IP67, IP69K |
| Flammability | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature | -40°C to 60°C |
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
