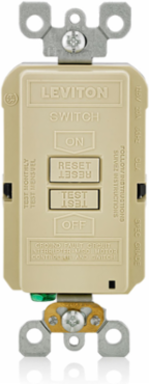

Leviton GFRBF-I 20 Amp Self-Test GFCI Receptacle, 125 Volt with LED Indicator, Ivory
- MPN: GFRBF-I
- UPC: 078477714539
- PPN: LEV-GFRBF-I
CAD
$48.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

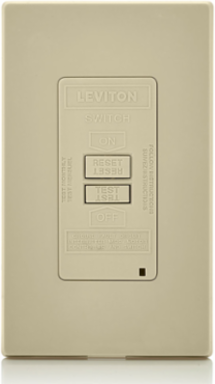

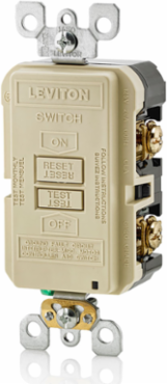

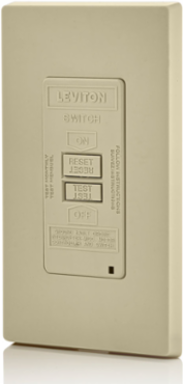

20 Amp Feed-Through, 125 Volt, Self-Test SmartlockPro® Blank Face GFCI Receptacle/Outlet, Monochromatic, Back and Side Wired, Wallplate/Faceplate Sold Separately. Self-Grounding Clip Included – Ivory
Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated
- SAFE – Delivers continuous ground fault protection
- SELF TESTING – Automatically self-tests to ensure it can respond to ground fault
- SIMPLE – Status indicator light provides simple, intuitive feedback
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Applicable Standards and Certifications
- UL|CSA|CSA C22.2 No. 144|UL 943
NEMAWD-1 and WD-6
Material Specifications
- Body
- Thermoplastic
- Grounding Screw
- #8 Galvanized Steel
- Mounting Strap
- Galvanized Steel
- TR Shutter
- Non-Tamper
- Terminal Screws
- #8 Plated Steel
FaceThermoplastic
Line ContactsBrass
Self-Grounding ClipYes
Terminal ClampsBrass
Mechanical Specifications
- Product ID
- Ratings are marked on device
- Torque Range
- 14-18 lbs.
TerminationBack and Side Wire
Wire Accomodation#10 - #14 AWG Copper, #10 - #12 Copper Clad
Product Features
- Brand
- SmartlockPro
- Device Type
- Blank Face Device
- Grade
- Residential/Commercial Specification Grade
- Product Type
- GFCI
ColorIvory
Feature(s)Indicator Light, Self-Test
NEMA ConfigurationBlank Face
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Operating Temperature
- Maximum Continuous 66°C, Minimum -35°C (w/o impact)
Electrical Specifications
- Amperage
- 20 A
- Grounding
- Self-Grounding
- Pole(s)
- 2
- Short Circuit Current Rating
- 10 kA
- Trip Level
- Class A
- Wire(s)
- 3
Dielectric Voltage1250 VAC
Horsepower Rating1 hp
Power Supply Input and Frequency125V, 60Hz
Temperature RiseMax 30°C
Voltage125 VAC
