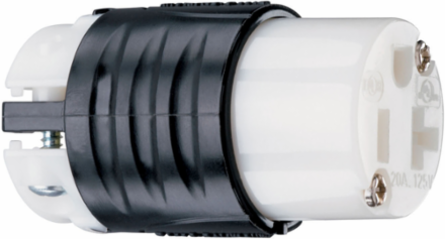

Pass & Seymour PS5369X 20A 125V Extra-Hard Use Straight Blade Connector, Black, 2.638 Inch Length
- MPN: PS5369X
- UPC: 785007237030
- PPN: P-S-PS5369X
CAD
$41.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Extra-Hard Use Straight Blade Connector, Black, 2.638 Inch Length
Features
- Unit arrives completely ready-to-wire, cuts installation time significantly.
- Nylon housing provides impact and chemical resistance. Rugged two-piece cord grip provides more uniform cord retention. Internal dust shield keeps terminals free of contaminants.
- Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
- All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
- Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
- Cord-grip screws recessed to protect installer against screwdriver head slippage.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 2.638 in
- Color
- Black
- Product Line
- Pass & Seymour
- Type
- Connector
- Standard
- UL 498
- Standard
- FEDSPEC
- Warranty Type
- 1-Year
- Connection
- Wire Grounding
- Features
- Corrosion Resistant
- NEMA Configuration Code
- 5-20R
- Connector Style
- Straight Blade
Width1.516 in
Country of OriginMexico
FlangedNo
Amperage20.0 A
Voltage125.0 V
Number of Wires3.0
Indoor/OutdoorIndoor
Number of PolesDouble Pole
Application SectorIndustrial
Terminal Accommodation#4 AWG
Special FeaturesReady to wire, rugged 2pc cord grip & internal dust shield
