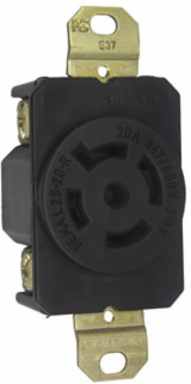

Pass & Seymour L2320R 20A NEMA L2320 Single Receptacle, 5-Wire, 347/600V, Black
- MPN: L2320R
- UPC: 785007232059
- PPN: P-S-L2320R
CAD
$98.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A NEMA L2320 Single Receptacle, 5-Wire, 347/600V, Black
Features
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
- Face color coding by voltage facilitates locating and mating of proper devices.
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
- Side and external screw-pressure-plate back wire capability.
- Accepts #14 - #10 AWG.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.19 in
- Height
- 2.37 in
- Color
- Black
- Product Line
- Pass & Seymour
- Amperage
- 20.0 A
- Number of Wires
- 5.0
- Voltage
- 347/600 VAC
- Number of Poles
- 4-Way
- Wall Plate Included
- No
- Number of Receptacles
- 1.0
- Features
- Brass Mounting Strap
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
Special FeaturesTurnlock, locking device, quick thread assembly, rounded back contour, impact & corrosion resistant, new design external cord grips
Width1.61 in
Country of OriginMexico
PhaseThree
StandardUL 498
Outlet TypeLocking
Indoor/OutdoorIndoor
Wire Size14 - 10 AWG
FeaturesImpact Resistant
Application SectorCommercial
NEMA Configuration CodeL23-20R
Wire Connection TypeScrew Terminals
