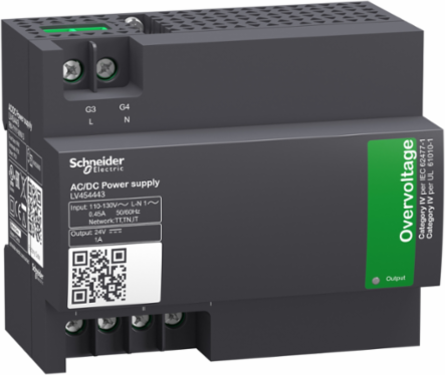

Schneider Electric LV454443 External power supply module, input voltage 110VAC to 130VAC 50/60Hz, output voltage 24VDC, output current 1A
- MPN: LV454443
- PPN: SCH-LV454443
CAD
$1270.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
External power supply module, input voltage 110VAC to 130VAC 50/60Hz, output voltage 24VDC, output current 1A
Documentation & Downloads
Specifications
Key Specifications
- Height
- 3.54 in
- Country of Origin
- Brazil, China, France, United States
Width4.25 in
Depth67.5 mm
Complementary Attributes
- Rated Power In W
- 24 W
Important Information Attributes
- Persona Type Ids
- LC, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 3000 V between input and ground, 3000 V between input and output1500 V between output and ground
- Holding Time
- >= 20 ms 110...130 V AC, >= 20 ms 110...130 V AC, >= 20 ms 110...130 V AC>= 20 ms 110...130 V AC, >= 20 ms 110...130 V AC, >= 20 ms 110...130 V AC
- Name Of Test
- electrostatic discharges conforming to EN/IEC 61000-4-2induced electromagnetic field conforming to EN/IEC 61000-4-6magnetic field conforming to EN 61000-4-8primary outage conforming to IEC 61000-4-29radiated electromagnetic field conforming to EN/IEC 61000-4-3rapid transient conforming to IEC 61000-4-4surge conforming to EN/IEC 61000-4-5radiated emissions conforming to EN 61000-6-3, conducted emissions on the power line conforming to EN 61000-6-3
- Range Of Product
- ComPact NSX100...250, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX400...630 DC, ComPact NS630b...1600, ComPact NS1600b...3200
- Accessory / Separate Part Type
- trip unit accessories, control units accessories
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.628047567567567
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 10 kg CO2 eq., 10.1072951351351
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- N
- Traceability
- No
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- power supply
- Energy Efficiency Optimized
- False
- Mounting Support
- 35 x 7.5 mm symmetrical DIN rail
- Permissible Temporary Current Boost
- 1.5 A 200 ms)
- Power Supply Type
- regulated switch mode
- Product Or Component Type
- external power supply module
- Returnability
- Yes
- Status Led
- 1 LED (Green) output voltage
- Total Lifecycle Carbon Footprint
- 62 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2308025FR
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 2
- Height Useful
- 90 mm
- Width Real
- 108 mm
- Connections - Terminals
- screw type terminals, connection capacity: 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWGscrew type terminals, connection capacity: 1 x 0.2...1 x 4 mm² 24 AWG...12 AWG
- Package Weight(Lbs)
- 384.0 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Environmental CharacteristicEMC conforming to EN/IEC 61000-6-2, EMC conforming to EN/IEC 61000-6-3safety conforming to IEC 62477-1, safety conforming to SELV
MarkingEAC, CE, UL
Overvoltage CategoryIV conforming to IEC 62477-1, IV conforming to UL 61010-1
Certificate AgencyUL 61010-1, IEC 62477-1
Carbon Footprint Of The Distribution Phase [A4]0.0614244324324324, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.152977297297297, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]51 kg CO2 eq., 51.2709999999999
Local Data StatusPublishable
Return IndicatorY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308025EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1913
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Compatibility CodeCB_EXTERNAL_POWERSUPPLY
Efficiency85 %
Inrush Current20 A 2 ms
Operating Positionhorizontal
Power Dissipation In W4.2 W
Product AvailabilityStock - Normally stocked in distribution facility
RangeMasterPact
Software Versionv5.9.4
Sustainable PackagingNo
Trip Unit NameMicroLogic
Supply Voltage 23 Supply Voltage110...130 V
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo ensure service continuity of electronic trip unit of an electrical system for 10 years at a 34% use rate, in accordance with the relevant standards.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh125.0928
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal90 mm
Width Nominal108 mm
[Us] Rated Supply Voltage110...130 V AC 50/60 Hz +10 % -15 %
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504409510
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Relative Humidity
- 0-95 % during operation, 0-95 % in storage
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 62.2207444324324
- Circularity Profile
- ENVEOLI2308025EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-50-85 °C, -50-85 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP2308025FR
Ip Degree Of ProtectionIP4X EN/IEC 60529 front face)IP2X EN/IEC 60529 connection terminals)IP3x EN/IEC 60529 housing)
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2308025FR
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- ComPact NSX100...250, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX400...630 DC, ComPact NS630b...1600, ComPact NS1600b...3200
Product Or Component Typeexternal power supply module
ETIM
- ETIM 8
- EC002542
ETIM 9EC002542
Output Attributes
- Output Protection Type
- against overload, protection technology: manual resetagainst overvoltage, protection technology: 30...32 V, manual reset, against short-circuits, protection technology: manual resetthermal, protection technology: automatic reset
- Power Supply Output Current
- 1 A
Output Voltage24 V DC +/-5 %
Input Attributes
- Efficiency
- 85 %
Input Voltage Limits93.5...143 V AC 47.5-63 Hz
