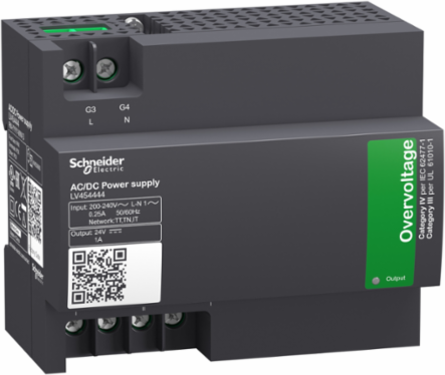

Schneider Electric LV454444 External Power Supply Module 200-240V AC Input 24V DC Output 1A
- MPN: LV454444
- PPN: SCH-LV454444
CAD
$1270.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This external power supply module from Schneider Electric is designed to provide reliable 24V DC output with an input range of 200-240V AC. It ensures a stable power supply for various applications, offering a current capacity of 1A to support a range of devices. Known for its durability and efficiency, this module serves as a crucial component in maintaining consistent operation in electrical systems, making it an indispensable choice for professionals in need of dependable power solutions.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 3.54 in
- Country of Origin
- Brazil, China, France, Indonesia, Poland, Sweden, United States
Width4.25 in
Depth67.5 mm
Complementary Attributes
- Rated Power In W
- 24 W
Important Information Attributes
- Persona Type Ids
- LC, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 3000 V between input and ground, 3000 V between input and output1500 V between output and ground
- Holding Time
- >= 20 ms 200...240 V AC, >= 20 ms 200...240 V AC, >= 20 ms 200...240 V AC>= 20 ms 200...240 V AC, >= 20 ms 200...240 V AC, >= 20 ms 200...240 V AC
- Name Of Test
- electrostatic discharges conforming to EN/IEC 61000-4-2induced electromagnetic field conforming to EN/IEC 61000-4-6magnetic field conforming to EN 61000-4-8primary outage conforming to IEC 61000-4-11radiated electromagnetic field conforming to EN/IEC 61000-4-3rapid transient conforming to IEC 61000-4-4surge conforming to EN/IEC 61000-4-5radiated emissions conforming to EN 61000-6-3, conducted emissions on the power line conforming to EN 61000-6-3
- Certificate Agency
- UL 61010-1, IEC 62477-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.059185, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1474, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 51 kg CO2 eq., 51.271
- Local Data Status
- Publishable
- Return Indicator
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Installation Carbon Footprint
- 0.1474
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- power supply
- Energy Efficiency Optimized
- False
- Mounting Support
- 35 x 7.5 mm symmetrical DIN rail
- Overvoltage Category
- IV conforming to IEC 62477-1III conforming to UL 61010-1
- Power Dissipation In W
- 4.2 W
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- MasterPact
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Trip Unit Name
- MicroLogic
- Supply Voltage 23 Supply Voltage
- 200...240 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To ensure service continuity of electronic trip unit of an electrical system for 10 years at a 34% use rate, in accordance with the relevant standards.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 125.0928
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 90 mm
- Width Nominal
- 108 mm
- [Us] Rated Supply Voltage
- 200...240 V AC 50/60 Hz +10 % -15 %
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 9.7129
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 9.7388
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 51.271
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
- 1.5343
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 3.5163
- Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
- 1.0059
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 225.38
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 38.786
- Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]
- 1.2519
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 76.233
- Net Use Of Fresh Water (M3) End Of Life [C1-c4]
- 3.0069
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 7.3769
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 5.0805
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 257.37
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 1557.1
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 10.115
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 5.0805
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 242.18
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1306.2
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -0.349
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 250.83
- Water Use (M3 Eq) Operational Energy Use [B6]
- 1.8142
- Customs Code
- 8504409510
Persona Type NamesContractor, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Environmental CharacteristicEMC conforming to EN/IEC 61000-6-2, EMC conforming to EN/IEC 61000-6-3safety conforming to IEC 62477-1, safety conforming to SELV
MarkingEAC, CE, UL
Range Of ProductComPact NSX100...250, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX400...630 DC, ComPact NS630b...1600, ComPact NS1600b...3200
Accessory / Separate Part Typecontrol units accessories, trip unit accessories
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6 kg CO2 eq., 0.60515
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 9.7388
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
Local Publishable Date2025-07-09
Stocking FlagY
TraceabilityNo
Manufacturing Carbon Footprint9.7388
Use Carbon Footprint51.271
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308025EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1913
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Compatibility CodeCB_EXTERNAL_POWERSUPPLY
Efficiency85 %
Inrush Current20 A 2 ms
Operating Positionhorizontal
Permissible Temporary Current Boost1.5 A 200 ms)
Power Supply Typeregulated switch mode
Product Or Component Typeexternal power supply module
ReturnabilityNo
Status Led1 LED (Green) output voltage
Total Lifecycle Carbon Footprint62 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2308025FR
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %2
Height Useful90 mm
Width Real108 mm
Connections - Terminalsscrew type terminals, connection capacity: 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWGscrew type terminals, connection capacity: 1 x 0.2...1 x 4 mm² 24 AWG...12 AWG
Package Weight(Lbs)369.000 g
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]51.203
Climate Change - Total ( Kg Co2 Eq.) Installation [A5]0.1474
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]247.26
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1306.2
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]212.9
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]552.15
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-5.8852
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]1.0202
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]47.341
Materials For Recycling (Kg) Installation [A5]0.081
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]7.3381
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-1.229
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]5.0805
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]1.6444
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]4.0178
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]250.83
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]5.0805
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]1.5343
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]3.5163
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]9.7868
Water Use (M3 Eq) Manufacturing [A1-a3]4.545
Water Use (M3 Eq) End Of Life [C1-c4]114.87
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Relative Humidity
- 0-95 % during operation, 0-95 % in storage
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 61.821535
- Circularity Profile
- ENVEOLI2308025EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-50-85 °C, -50-85 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP2308025FR
Ip Degree Of ProtectionIP4X EN/IEC 60529 front face)IP2X EN/IEC 60529 connection terminals)IP3x EN/IEC 60529 housing)
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2308025FR
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- ComPact NSX100...250, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX400...630 DC, ComPact NS630b...1600, ComPact NS1600b...3200
Product Or Component Typeexternal power supply module
ETIM
- ETIM 8
- EC002542
ETIM 9EC002542
Output Attributes
- Output Protection Type
- against overload, protection technology: manual resetagainst overvoltage, protection technology: 30...32 V, manual reset, against short-circuits, protection technology: manual resetthermal, protection technology: automatic reset
- Power Supply Output Current
- 1 A
Output Voltage24 V DC +/-5 %
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Efficiency
- 85 %
Input Voltage Limits170...264 V AC 47.5-63 Hz
