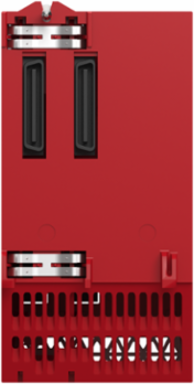

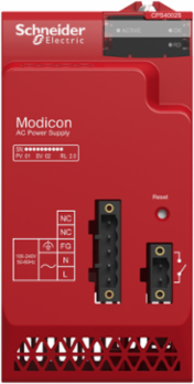

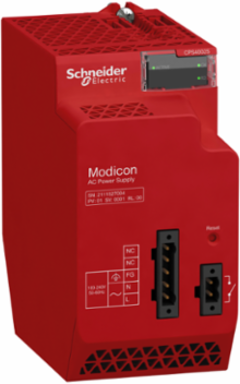

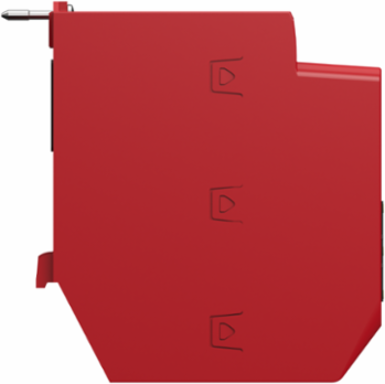

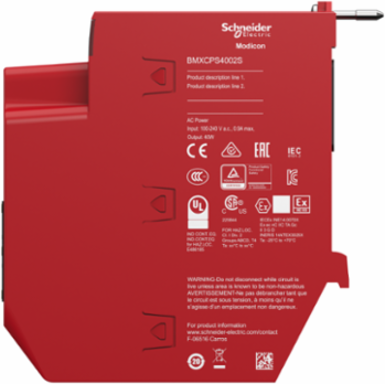

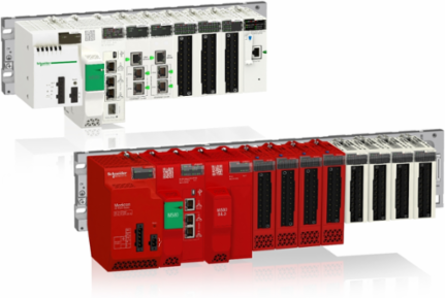

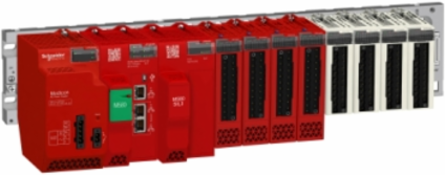

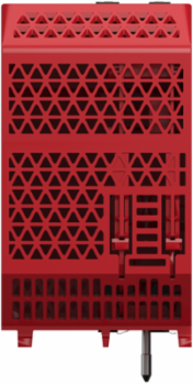

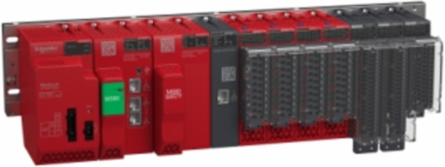

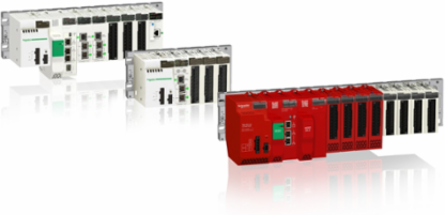

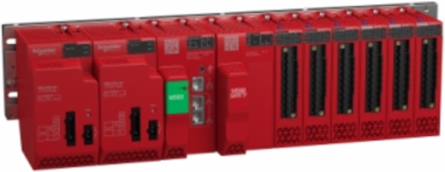

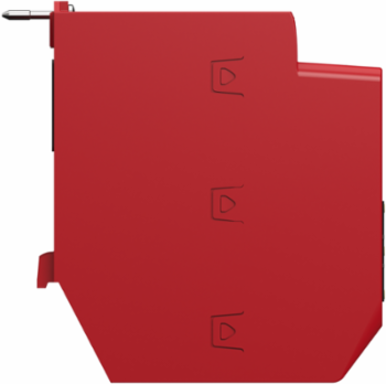

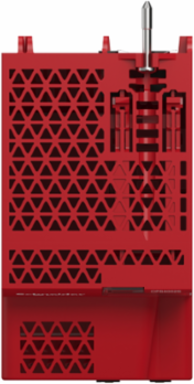

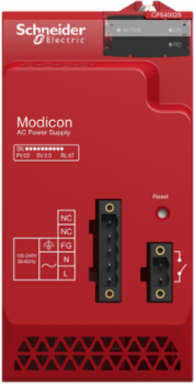

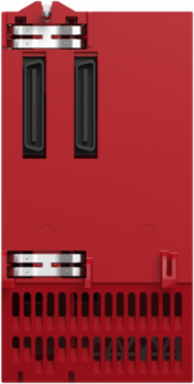

Schneider Electric BMXCPS4002S Redundant Power Supply Module 100-240V AC, 40W 24V DC, IP20
- MPN: BMXCPS4002S
- PPN: SCH-BMXCPS4002S
CAD
$2446.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

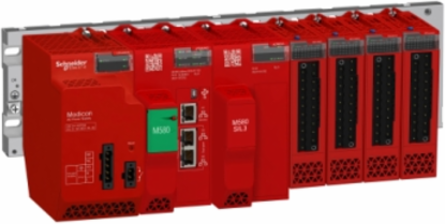

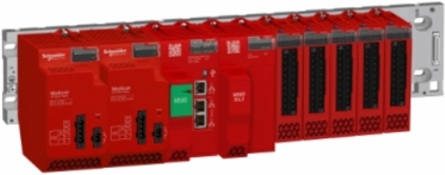

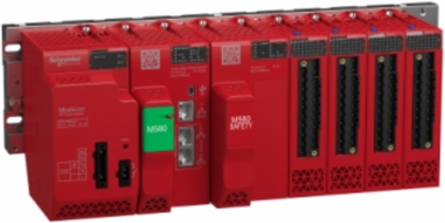

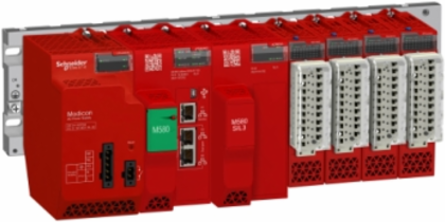

This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This power supply module with a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC and UL. It meets EN 61131-2, EN 61000-6-5, EN 61850-3 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Sweden, Singapore
Complementary Attributes
- Maximum Power Dissipation In W
- 8.5 W
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current At Secondary Voltage
- 4.5 A 3.3 V DC I/O module logic power supply, 1.67 A 24 V DC I/O module power supply and processor
- Environmental Characteristic
- hazardous location class I division 2, gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3
- Insulation Resistance
- >= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary, >= 100 MOhm primary/secondary>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
- Status Led
- 1 LED (Green) presence of voltages (OK), 1 LED (Green) redundancy OK, 1 LED (Green) power supply status
- Carbon Footprint Of The Distribution Phase [A4]
- 0.9470359136739728, 0.9 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.005922770498387473, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 467 kg CO2 eq., 467.2337794379028
- Local Publishable Date
- 2026-04-04
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Control Type
- RESET push-button cold restart
- Immunity To Microbreaks
- 10 ms
- It On Activation
- 0.1 A.s 115 V0.15 A.s 230 V
- Network Frequency
- 50/60 Hz
- Primary Voltage
- 100...240 V
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- conformal coating
- Returnability
- Yes
- Shock Resistance
- 15 gn
- Supply Circuit Type
- AC
- Total Lifecycle Carbon Footprint
- 495 kg CO2 eq.
- Pep Code
- ENVPEP2410045EN
- Pep Verification Date
- 2024-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; United States, US
- I²T On Activation
- 1 A².s 115 V4 A².s 230 V
- Package Weight(Lbs)
- 618.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor2300 V primary/secondary sensor power supply, 1500 V primary/ground500 V 24 V sensor output/ground
Function Availableredundancy information, redundancy test, temperature sensing, remaining lifetime, uptime duration
Protection Typeinternal fuse not accessible primary circuitoverload protection secondary circuit, overvoltage protection secondary circuit, short-circuit protection secondary circuit
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22, TÃœV
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.4414198113750236
Carbon Footprint Of The Manufacturing Phase [A1 To A3]26 kg CO2 eq., 25.55447502170535
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2410045EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1940
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Apparent Power0.13 kVA
Electrical Connection1 connector 2 alarm relay1 connector 5 line supply, protective earth
Inrush Current30 A 115 V60 A 230 V
Mtbf Reliability792000 H
Network Frequency Limits47-63 Hz
Primary Voltage Limit85...264 V
Product Or Component Typepower supply module
Range Of ProductModicon X80
Secondary Power15 W 3.3 V DC -25-60 °C I/O module logic power supply40 W 24 V DC -25-60 °C I/O module power supply and processor if 3.3 V not loaded
Software Versionv6.1
Sustainable PackagingYes
Vibration Resistance3 gn
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide power to a Modicon X80 controller during 10 years and at 90% use rate, in accordance with relevant safety and performance standards.To provide power to a Modicon X80 platform during 10 years with a 90% use rate, in accordance with relevant safety and performance standards.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh670.14
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; United States, US
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; United States, US
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504409510
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Directives
- 2014/30/EU - electromagnetic compatibility, 2006/42/EC - machinery, 2014/34/EU - ATEX directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2410045EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2410045EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint495.1826329551555
Environmental DisclosureENVPEP2410045EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product Compatibilityall backplane
Relative Humidity5-95 % 55-55 °C without condensation
Pep Verification Date2024-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- power supply module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC000599
ETIM 9EC000599
Input Attributes
- Input Current
- 0.55 A 230 V1.1 A 115 V
