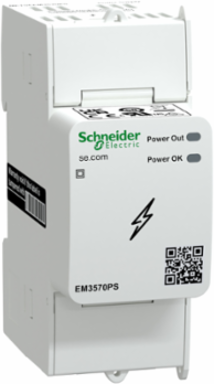

Schneider Electric METSEEM3570PS 24VDC power supply module for DIN Ethernet PowerLogic EM3750 meter 600V AC input
- MPN: METSEEM3570PS
- PPN: SCH-METSEEM3570PS
CAD
$218.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The EM3570PS provides 24VDC control power to the meter from a wide range of AC input. The 24VDC voltage adaptor accept network input from 90VAC to 600VAC, or from 125VDC to 300VDC. Product dimensions are as follows: width 36 mm, depth 70 mm, height 91 mm. Thanks to its form factor, similar to the meter, you can put meter and power supply side by side. Supplied at the bottom, the 24VDC output terminal block is at the top, to be easily connected to the meter.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
Depth68 mm
Complementary Attributes
- Maximum Output Current
- 0.3 A
Rated Power In W8 W
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- EMC immunity IEC 61326-1, EMC immunity EN 61326-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0129021858, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0010562477, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 175 kg CO2 eq., 175.3287807309
- Local Data Status
- Publishable
- Pre Comm Date
- 2024-08-20
- Stocking Flag
- N
- Serviceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Installation Category
- III
- Local Signalling
- power supply (OFF) LED Orange)power supply (ON) LED Green)
- Network Frequency
- 50/60 Hz
- Primary Voltage
- 600 V AC300 V DC
- Product Name
- PowerLogic EM3570
- Range
- PowerLogic
- Secondary Voltage
- 24 V DC
- Supply Voltage Limits
- 90-600 V AC125-300 V DC
- Total Lifecycle Carbon Footprint
- 195 kg CO2 eq.
- Pep Code
- ENVPEP2103001EN
- Pep Verification Date
- 2021-03-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: INDIA
- Energy Model - Use [B6]
- Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity mix; AC; consumption mix, at consumer; 220V; CN / Electricity mix; AC; consumption mix, at consumer; 220V - 230V; RER
- Height Nominal
- 95 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504409510
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Certificate AgencyCE EN 61326-1 2013CE EN 61010-1 2010, CE EN 61010-1 2019UL UL 61010-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0725464481
Carbon Footprint Of The Manufacturing Phase [A1 To A3]20 kg CO2 eq., 19.5919854281
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310190EN_Web.pdf, PLSED310190EN
Local Publishable Date2025-06-18
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2103001_V1
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2108
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Energy Efficiency OptimizedFalse
Level Or ClassM1
Mounting Locationindoor use only
Power Consumption In Va20 VA
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typepower supply module
ReturnabilityYes
Software VersionEIME v5.8.1
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit Description1.Bidirectional Energy measurement, External current sensors, Supports Multi tariff, Demand Low-voltage DC control power& 102.AC/DC Power Supply with 24Vdc Output
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh231.264
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity mix; AC; consumption mix, at consumer; 220V; CN / Electricity mix; AC; consumption mix, at consumer; 220V - 230V; RER
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity mix; AC; consumption mix, at consumer; 220V; CN / Electricity mix; AC; consumption mix, at consumer; 220V - 230V; RER
Width Nominal36 mm
Package Weight(Lbs)164.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Operating Altitude
- <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2103001_V1
- Environmental Disclosure
- ENVPEP2103001EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % non-condensing
- Pep Verification Date
- 2021-03-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint195.0072710406
Electrical Endurance ClassE2
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2103001EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- power supply module
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Maximum Output Current
- 0.3 A
