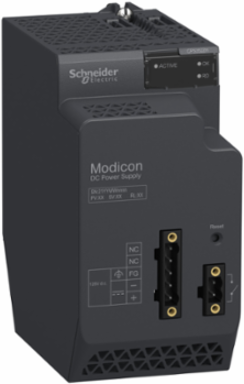

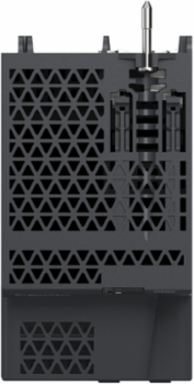

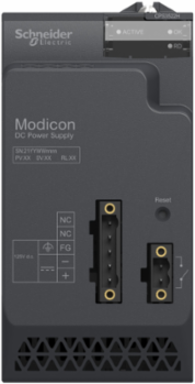

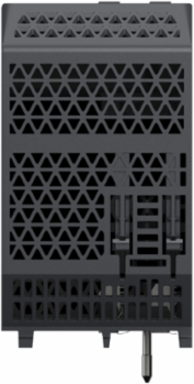

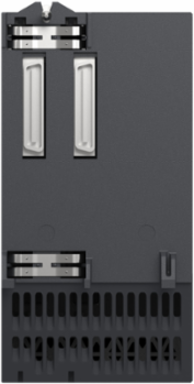

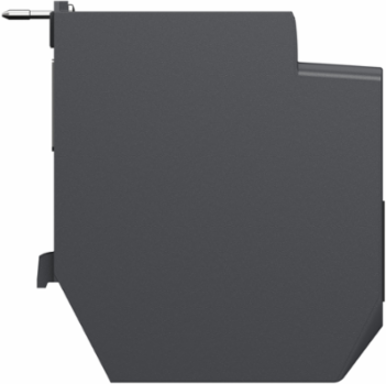

Schneider Electric BMXCPS3522H Redundant Power Supply Module 125 V DC for Severe Environments

MPN: BMXCPS3522H
PPN: SCH-BMXCPS3522H
UNSPSC: 32151705

$2895.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This power supply for severe environments is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This power module provide the power supply for Modicon X80 rack and the modules installed on it. This power supply has a power consumption of 40W. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. The power supply has a weigh of 0.610kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This power supply is compatible with Modicon M340 range. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Features

Reduced time to profit
Cybersecure operation risk management
Productivity improvement for process efficiency
Reliability and robustness
Connectivity, openness and transparency
Scalable high availability fault tolerant architecture

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Weight	740 g

Complementary Attributes

Maximum Power Dissipation In W	8.5 W

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Current At Secondary Voltage	1.67 A 24 V DC I/O module power supply and processor, 5 A 3.3 V DC I/O module logic power supply
Environmental Characteristic	gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
Insulation Resistance	>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary, >= 100 MOhm primary/secondary>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
Status Led	1 LED (Green) presence of voltages (OK), 1 LED (Green) redundancy OK, 1 LED (Green) power supply status
Carbon Footprint Of The Distribution Phase A4	1.095010275185531, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.006848203388760516, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	467 kg CO2 eq., 467.2337794379028
Local Publishable Date	2026-07-27
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Electrical Connection	1 connector 2 alarm relay1 connector 5 line supply, protective earth
Inrush Current	60 A 125 V
Mtbf Reliability	830000 H
Primary Voltage Limit	100...150 V
Product Or Component Type	power supply module
Protective Treatment	conformal coating
Returnability	No
Software Version	v6.1
Sustainable Packaging	Yes
Database Version	2023-02
I²T On Activation	2.5 A².s 125 V
Customs Code	8504409510
Packaging Weight In G	153.5
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength	1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor2300 V primary/secondary sensor power supply, 1500 V primary/ground
Function Available	temperature sensing, redundancy information, redundancy test, uptime duration, remaining lifetime
Protection Type	internal fuse not accessible primary circuitoverload protection secondary circuit, overvoltage protection secondary circuit, short-circuit protection secondary circuit
Certificate Agency	CE, UL, CSA, RCM, EAC, Merchant Navy
Carbon Footprint Of The End Of Life Phase C1 To C4	2 kg CO2 eq., 1.6666416569023712
Carbon Footprint Of The Manufacturing Phase A1 To A3	30 kg CO2 eq., 29.547361743846814
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2410045EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1940
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Control Type	RESET push-button cold restart
Immunity To Microbreaks	1 ms
It On Activation	0.09 A.s 125 V
Primary Voltage	125 V
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Specific Application	for severe environments
Range Of Product	Modicon X80
Secondary Power	18 W 3.3 V DC -25-70 °C I/O module logic power supply40 W 24 V DC -25-70 °C I/O module power supply and processor if 3.3 V not loaded
Supply Circuit Type	DC
Total Lifecycle Carbon Footprint	500 kg CO2 eq.
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Description	To provide power to a Modicon X80 controller during 10 years and at 90% use rate, in accordance with relevant safety and performance standards.To provide power to a Modicon X80 platform during 10 years with a 90% use rate, in accordance with relevant safety and performance standards.
Functional Unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	670.14

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2410045EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	all backplane
Relative Humidity	10-95 % without condensation
Pep Verification Date	2024-12-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	499.54964131722625
Environmental Disclosure	ENVPEP2410045EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2410045EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
