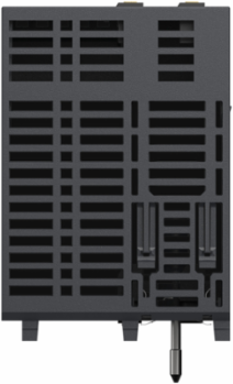

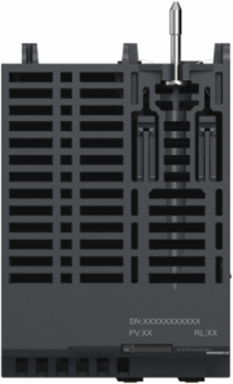

Schneider Electric BMXCPS3020H Modicon X80 Power Supply Module 24-48V DC 31.2W IP20
- MPN: BMXCPS3020H
- PPN: SCH-BMXCPS3020H
CAD
$1655.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

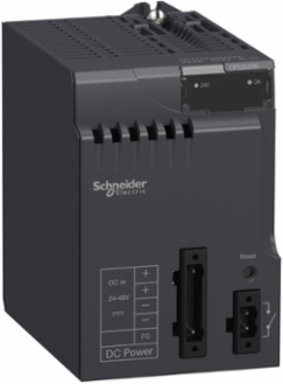

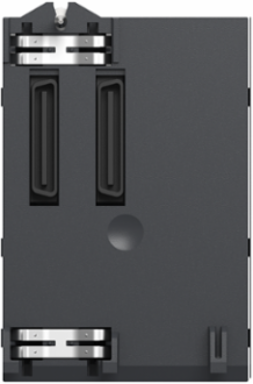

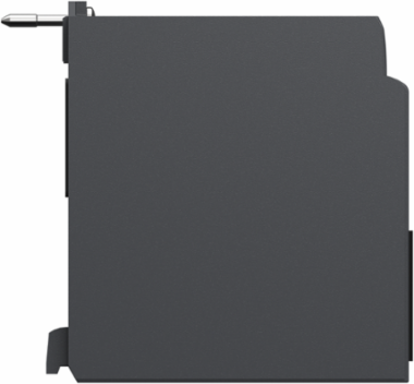

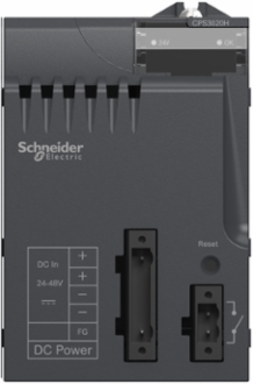

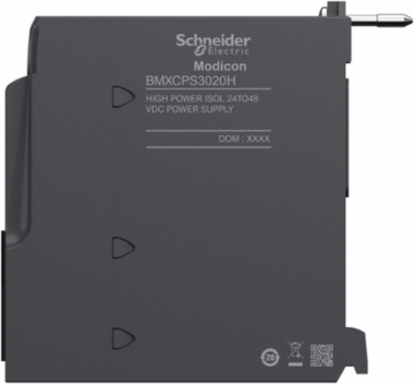

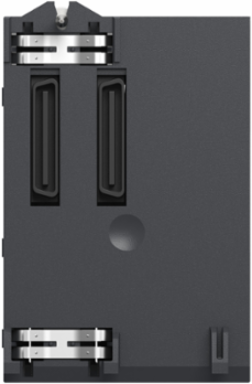

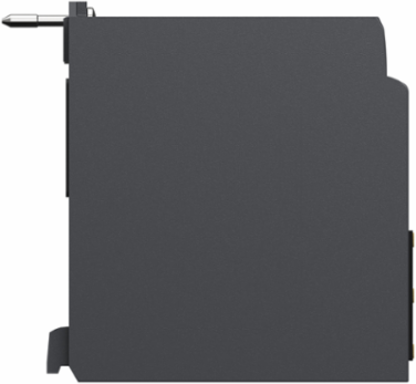

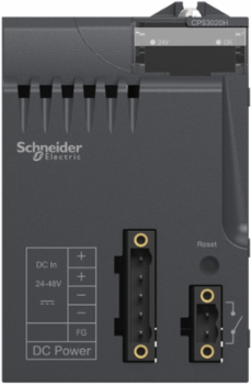

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has an isolated primary voltage of 24V to 48V DC. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.34kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Primary Voltage
- 24...48 V isolated
- Product Or Component Type
- power supply module
- Product Specific Application
- for severe environments
- Product Compatibility
- not compatible with BMEXBP..02
Range Of ProductModicon X80
Secondary Power15 W 3.3 V DC 0-60 °C I/O module logic power supply || 31.2 W 24 V DC 0-60 °C I/O module power supply and processor || 11.3 W 3.3 V DC -25-70 °C I/O module logic power supply || 23.4 W 24 V DC -25-70 °C I/O module power supply and processor
Supply Circuit TypeDC
Complementary
- Mtbf Reliability
- 4600000 H
- Primary Voltage Limit
- 18...62.4 V
- Status Led
- 1 LED (green) rack voltage OK
- Input Current
- 0.83 A 48 V || 1.65 A 24 V
- Insulation Resistance
- >= 10 MOhm primary/ground || >= 10 MOhm primary/secondary
- Control Type
- RESET push-button cold restart
- Electrical Connection
- 1 connector 2 alarm relay || 1 connector 5 line supply, protective earth
- Protection Type
- internal fuse not accessible primary circuit || overload protection secondary circuit, 24 V sensor power supply || overvoltage protection secondary circuit, 24 V sensor power supply || short-circuit protection secondary circuit, 24 V sensor power supply
Maximum Cable Distance Between Devices10 m power supply cable copper 1.5 mm² || 15 m power supply cable copper 2.5 mm²
It On Activation0.2 A.s 24 V || 0.3 A.s 48 V
I²T On Activation1 A².s 24 V || 3 A².s 48 V
Current At Secondary Voltage1.3 A 24 V DC I/O module power supply and processor || 4.5 A 3.3 V DC I/O module logic power supply
Net Weight0.34 kg
Maximum Power Dissipation In W8.5 W
Inrush Current30 A 24 V || 60 A 48 V
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- IEC 61131-2 || IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || IEC 60079-0
- Shock Resistance
- 30 gn
- Vibration Resistance
- 3 gn
- Ambient Air Temperature For Storage
- -40-85 °C
- Operating Altitude
- 0...2000 m || 2000...5000 m with derating factor
- Ip Degree Of Protection
- IP20
Immunity To Microbreaks1 ms
Product CertificationsCE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
Environmental Characteristicgas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
Directives2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
Relative Humidity5-95 % 55-55 °C without condensation
Protective Treatmentconformal coating
Dielectric Strength1500 V primary/ground || 1500 V primary/secondary
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
