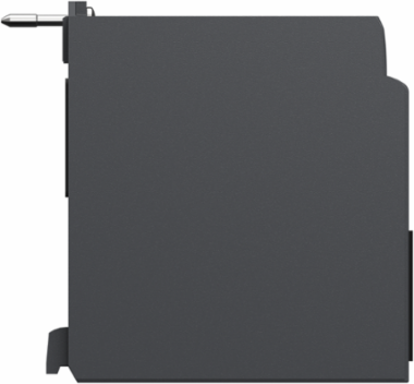

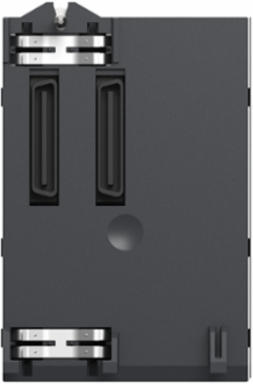

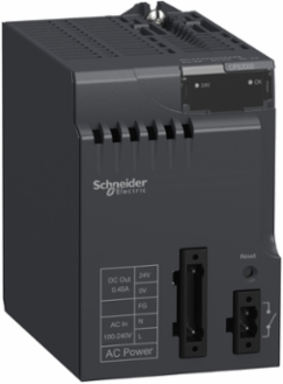

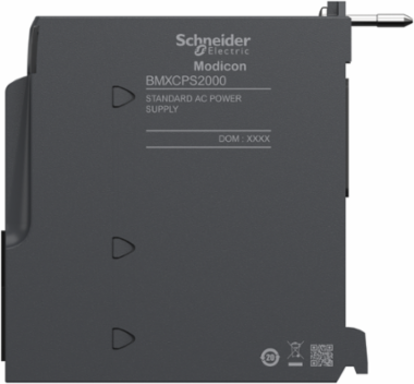

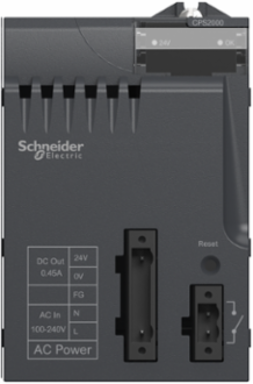

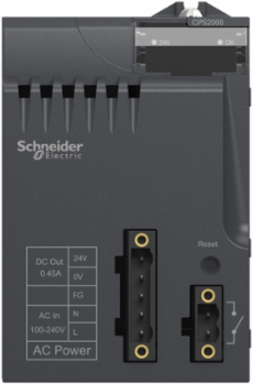

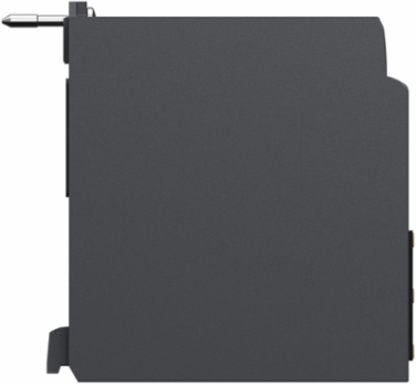

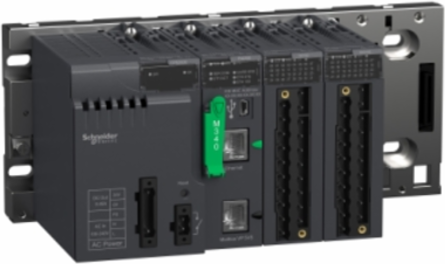

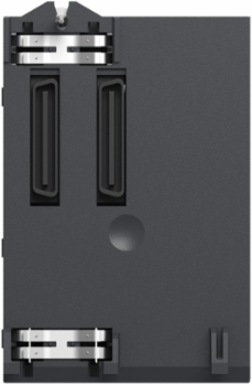

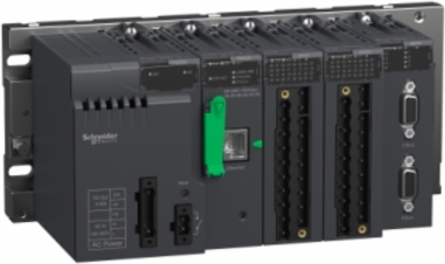

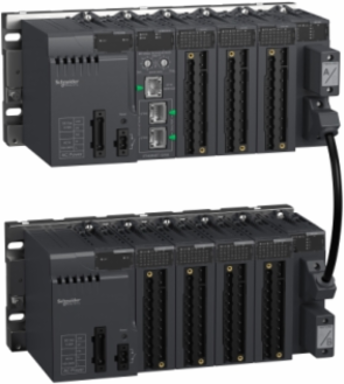

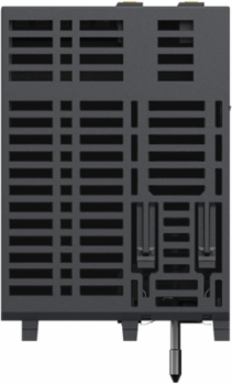

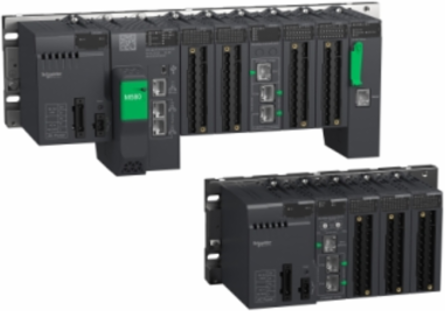

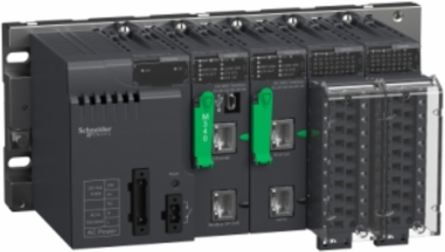

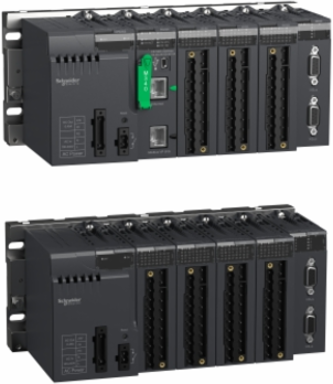

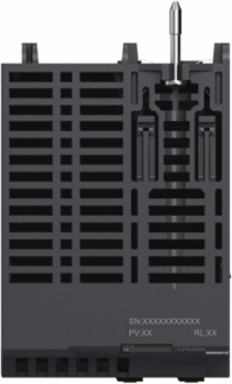

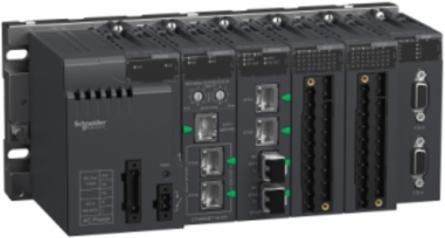

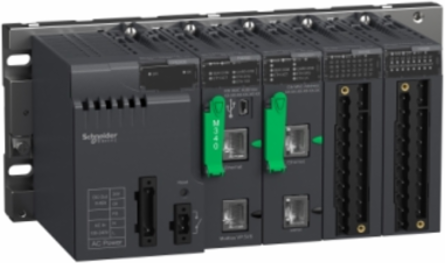

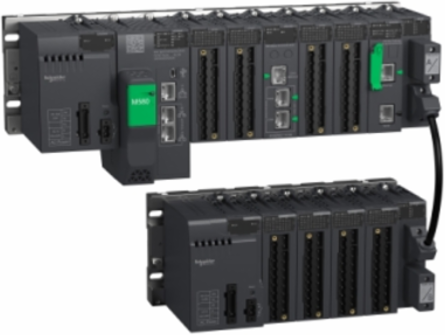

Schneider Electric BMXCPS2000 Modicon X80 Power Supply Module 100-240V AC 20W IP20
- MPN: BMXCPS2000
- PPN: SCH-BMXCPS2000
CAD
$705.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 16.8W at 24V DC, a current at secondary voltage of 2.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.3kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, Indonesia, Singapore, United States
Complementary Attributes
- Maximum Power Dissipation In W
- 8.5 W
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current At Secondary Voltage
- 0.45 A 24 V DC sensor power supply, 0.7 A 24 V DC I/O module power supply and processor, 2.5 A 3.3 V DC I/O module logic power supply
- Electrical Connection
- 1 connector 2 alarm relay, 1 connector 5 line supply, protective earth, 24 V DC input sensor
- Insulation Resistance
- >= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary, >= 100 MOhm primary/secondary>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
- Protection Type
- internal fuse not accessible primary circuit, overload protection secondary circuit, overvoltage protection secondary circuit, short-circuit protection secondary circuit
- Status Led
- 1 LED (Green) rack voltage OK, 1 LED (Green) sensor voltage
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.6077559102040816
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 5.091602367346939
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2402022EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1940
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Apparent Power
- 0.07 kVA
- Immunity To Microbreaks
- 1 ms
- Network Frequency
- 50/60 Hz
- Primary Voltage
- 100...240 V
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Vibration Resistance
- 3 gn
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The power supply provides power to the modules on a M340 or M580 rack (main or drop) with a primary voltage of 100V to 240V AC , a secondary power of 31.2W at 24V DC and a maximum power dissipation of 8.5W.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 670.14
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; CN
- I²T On Activation
- 12 A².s 240 V
- Package Weight(Lbs)
- 481.000 g
- Warranty (In Months)
- 18
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 206.49
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1067.1
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor, 2300 V primary/secondary sensor power supply, 1500 V primary/ground, 500 V 24 V sensor output/ground
Inrush Current30 A 120 V, 60 A 240 V
It On Activation0.06 A.s 240 V, 0.03 A.s 120 V
Secondary Power10.8 W 24 V DC sensor power supply, 16.8 W 24 V DC I/O module power supply and processor, 8.3 W 3.3 V DC I/O module logic power supply
Carbon Footprint Of The Distribution Phase [A4]0.0573798163265306, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2134806775510204, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]451 kg CO2 eq., 450.6399999999999
Local Publishable Date2026-04-04
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Control TypeRESET push-button cold restart
Mtbf Reliability4638000 H
Network Frequency Limits47-63 Hz
Primary Voltage Limit85...264 V
Product Or Component Typepower supply module
Range Of ProductModicon X80
Shock Resistance30 gn
Supply Circuit TypeAC
Total Lifecycle Carbon Footprint457 kg CO2 eq.
Pep CodeENVPEP2402022EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; CN
Recyclability Potential, In %1
Nbr. Of Units In Pkg.1
Take-backNo
Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]3.0466
Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]1.1076
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1067.1
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Operating Altitude
- 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2402022EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2402022EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take BackNo
China Rohs RegulationX
Carbon Footprint456.6102187714285
Circularity ProfileENVEOLI2402022EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product Compatibilitynot compatible with BMEXBP..02
Relative Humidity5-95 % 55-55 °C without condensation
