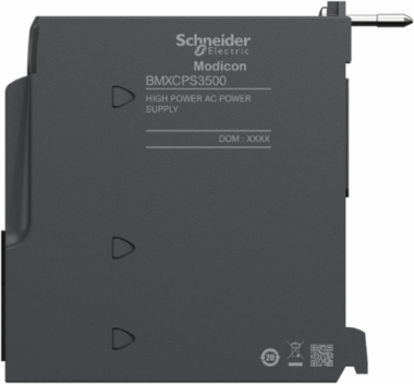

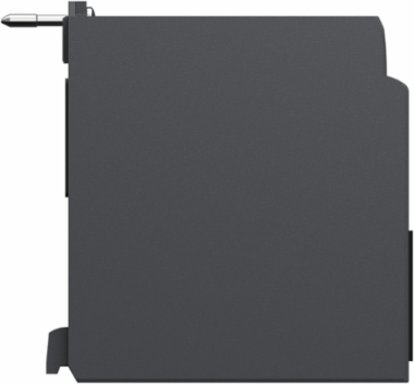

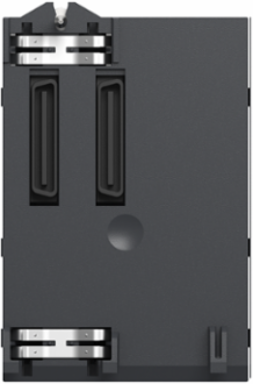

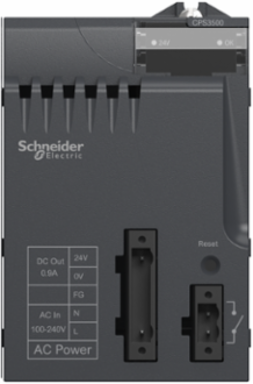

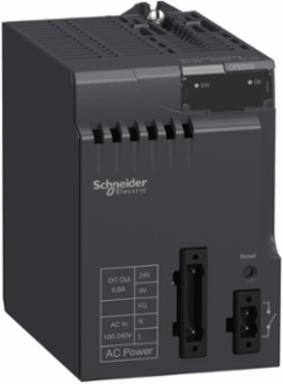

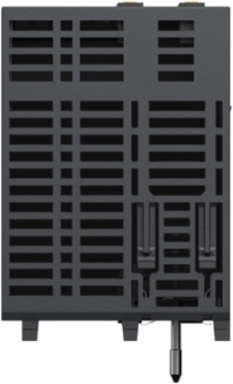

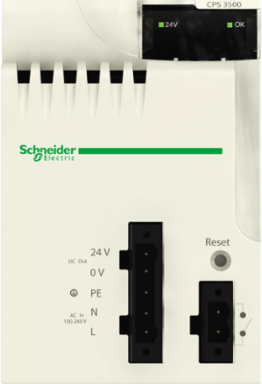

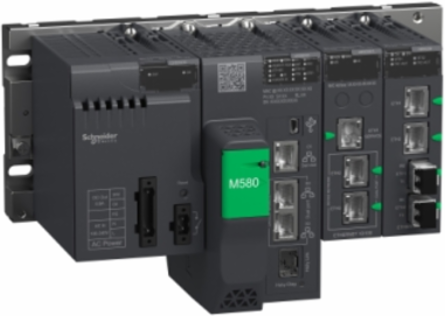

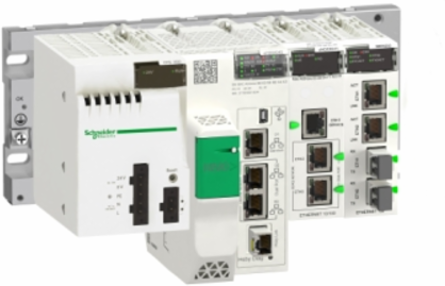

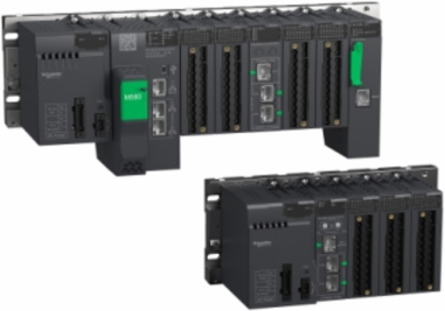

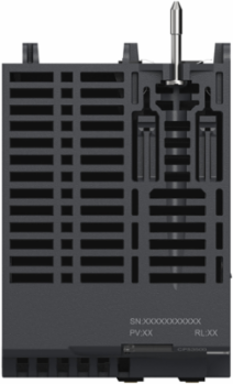

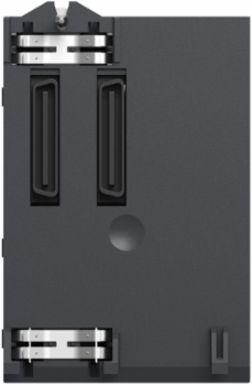

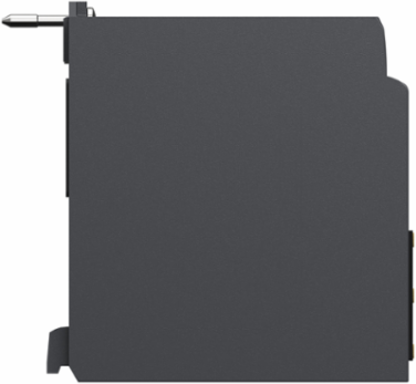

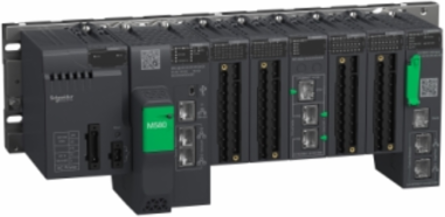

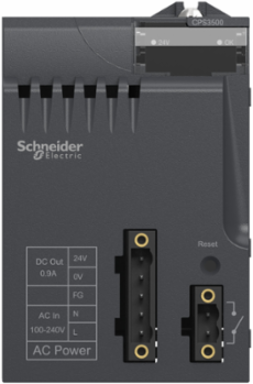

Schneider Electric BMXCPS3500 Modicon X80 Power Supply Module 100-240V AC 36W IP20
- MPN: BMXCPS3500
- PPN: SCH-BMXCPS3500
CAD
$1381.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

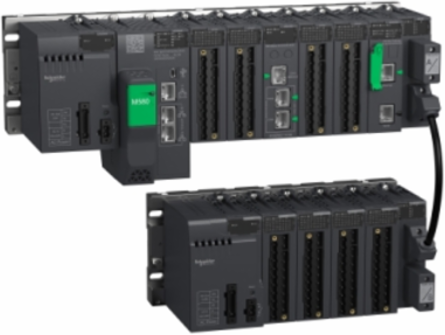

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Singapore, United States
Complementary Attributes
- Maximum Power Dissipation In W
- 8.5 W
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current At Secondary Voltage
- 0.9 A 24 V DC sensor power supply, 1.3 A 24 V DC I/O module power supply and processor, 4.5 A 3.3 V DC I/O module logic power supply
- Electrical Connection
- 1 connector 2 alarm relay, 1 connector 5 line supply, protective earth, 24 V DC input sensor
- Insulation Resistance
- >= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary, >= 100 MOhm primary/secondary>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
- Protection Type
- internal fuse not accessible primary circuit, overload protection secondary circuit, overvoltage protection secondary circuit, short-circuit protection secondary circuit
- Status Led
- 1 LED (Green) rack voltage OK, 1 LED (Green) sensor voltage
- Carbon Footprint Of The Distribution Phase [A4]
- 0.064075, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.23839, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 451 kg CO2 eq., 450.64
- Local Publishable Date
- 2026-04-04
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Use Carbon Footprint
- 450.64
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Control Type
- RESET push-button cold restart
- Mtbf Reliability
- 4300000 H
- Network Frequency Limits
- 47-63 Hz
- Primary Voltage Limit
- 85...264 V
- Product Or Component Type
- power supply module
- Range Of Product
- Modicon X80
- Shock Resistance
- 30 gn
- Supply Circuit Type
- AC
- Total Lifecycle Carbon Footprint
- 457 kg CO2 eq.
- Pep Code
- ENVPEP2402022EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; CN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]
- 3.0466
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Installation [A5]
- 0.2278
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]
- 0.6536
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 450.64
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
- 2.4814
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 5.7967
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 85.157
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 7244.4
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -3.4867
- Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]
- 3.4767
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 23.037
- Materials For Recycling (Kg) Installation [A5]
- 0.131
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 5.4148
- Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -3.4298
- Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
- 3.9956
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 5.5701
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 86.879
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 2.6595
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 6.5095
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 2.5591
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 5.5701
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 78.75
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 8334.3
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -3.1215
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 2.6556
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1067.1
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor, 2300 V primary/secondary sensor power supply, 1500 V primary/ground, 500 V 24 V sensor output/ground
Inrush Current30 A 120 V, 60 A 240 V
It On Activation0.05 A.s 120 V, 0.07 A.s 240 V
Secondary Power15 W 3.3 V DC I/O module logic power supply, 31.2 W 24 V DC I/O module power supply and processor, 21.6 W 24 V DC sensor power supply
I²T On Activation1 A².s 120 V, 3 A².s 240 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.7 kg CO2 eq., 0.67867
Carbon Footprint Of The Manufacturing Phase [A1 To A3]6 kg CO2 eq., 5.6857
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Manufacturing Carbon Footprint5.6857
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402022EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1940
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Apparent Power0.12 kVA
Immunity To Microbreaks1 ms
Network Frequency50/60 Hz
Primary Voltage100...240 V
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Software Versionv5.9.4
Sustainable PackagingYes
Vibration Resistance3 gn
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe power supply provides power to the modules on a M340 or M580 rack (main or drop) with a primary voltage of 100V to 240V AC , a secondary power of 31.2W at 24V DC and a maximum power dissipation of 8.5W.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; CN
Recyclability Potential, In %1
Package Weight(Lbs)530.000 g
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]5.6602
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]450.4
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]5.6857
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]84.32
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]8334.3
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-3.1215
Ecotoxicity (Fresh Water) (Ctue) Installation [A5]1.6269
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]321.14
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]5.2859
Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]1.7801
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]206.49
Net Use Of Fresh Water (M3) End Of Life [C1-c4]4.2881
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]73.612
Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]1.1076
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle5.5701
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle9498.2419
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]0.8939
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]9401.3
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-4.0713
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1067.1
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]5.5701
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]2.4814
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]5.7967
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle2.6556
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-2.358
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]1.4082
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Operating Altitude
- 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2402022EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2402022EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take BackNo
China Rohs RegulationX
Carbon Footprint457.306835
Circularity ProfileENVEOLI2402022EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product Compatibilitynot compatible with BMEXBP..02
Relative Humidity5-95 % 55-55 °C without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- power supply module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC000599
ETIM 9EC000599
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Current
- 0.52 A 240 V, 1.04 A 115 V
